Specifications
Brand Name :
RUISEN
Delivery Time :
90-120DAYS
Material :
Aluminium, Carbon steel, Copper, Titanium
Place of Origin :
CHINA
Application :
Engineering for oil&gas, chemical industry
Process :
explosive bonding and hot rolled
Description

Stainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure Vessels

Explosive Welding Clad Plates For Pressure Vessels

Explosive welding Clad metals are a low-resistance, high-strength joint that allows the welding of two dissimilar metals. They are for use in high-current, high-temperature, and mechanical stress environments. The explosive welding creates dissimilar metals into metallurgically bonded. Dissimilar metals are permanently joined for 100% electrical continuity, and demonstrate the characteristics of contiguous metal at the bond interface.

Zigzag bonding Physical binding zone morphology Nanoscale ultrafine grain zone

Stainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure Vessels Stainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure Vessels Stainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure Vessels

Advantages

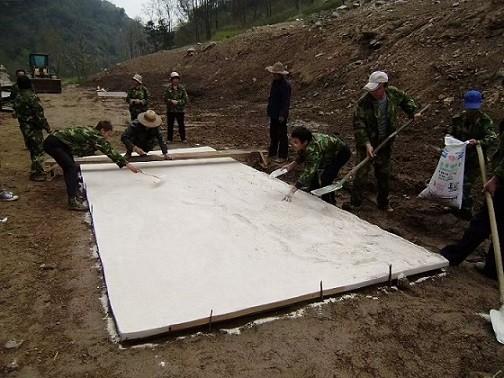

  • High bonding strength: the energy of explosive explosion makes the base plate(Carbon steel ) impact the clad plate(Stainless steel, Copper, Titanium, etc.) at high speed, generating high temperature and high pressure to achieve solid-phase welding of the interface of the different metals. Ideally, the shear strength of the interface can reach 400Mpa/mm2.
  • Multi-metal bonding: Make the different metals to bonding well, even if these metal are in different melting point, strength, thermal expansion coefficient…, such as: aluminum, copper, titanium, stainless steel and other metals.
  • The thickness range of clad plate is large.

  • Cladding thickness:2-12mm

    Basement :≥6mm

    Width:＜4000 mm

    Length:＜14000mm

Types of clad plates

Stainless steel Carbon steel clad plates

Copperaluminum carbon steel clad plates

Aluminum carbon steel clad plates

Titanium carbon steel clad plates

Zirconium carbon steel clad pates

Silver carbon steel clad plates

And other metals.....

Normally series: ASME standard available for oversea market.

Cladding Layer Basement Application
SS304, SS316L, SS321, SS904L, 2205 .... SA516 GR.60/70, Q235B,Q345R... manufacturing chemical, fertilizer, petroleum, printing and dyeing, atomic energy and other fields of industrial equipment, pressure vessels, pipelines, heat exchangers, etc
AL1050, AL1060, AL5083... SA516 GR.60/70, Q235B,Q345R... aluminum smelter, zinc smelter
TA1, TA2, SB265 Gr.2/ Gr.17... SA516 GR.60/70, Q235B,Q345R...

Pressure vessel, Oxidation Reactor, Condenser, Heat exchange,Reduction Furnace,etc.
T1, T2, C11000, C12000... SA516 GR.60/70, Q235B,Q345R... aluminum smelter, zinc smelter
SB551 R60700, R60702 TA1, SA516 GR.60/70, Q235B,Q345R... Pressure vessel, Oxidation Reactor, Condenser, Heat exchange,Reduction Furnace,etc.

Stainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure VesselsStainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure VesselsStainless Steel And Carbon Steel Explosion Bonded Clad Plate For Pressure Vessels
