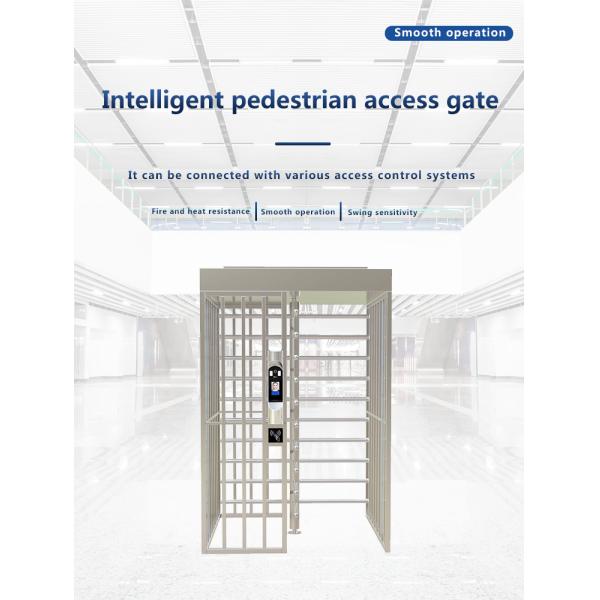

Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building
Specifications
Brand Name :
REALPARK
Model Number :
YB309-QG02K
Certification :
CE and ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
Welcome to contact us!
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set/Month
Delivery Time :
2-4 weeks
Part Type :
Full Height Turnstile Gate
Part No. :
YB309-QG02K
Power Supply: :
AC220V±10V/50Hz,AC110V±10V/60Hz
Power Consumption: :
100W
Temperature: :
-15~ +60°
Passage Width: :
600mm
Working Environment: :
Support Indoor or outdoor with shed
Arm Open/Close Time: :
2s
Communication Interface: RS485 (Distance): :
<=1200m
Warranty： :
1 Year
Description

Full Height Turnstile Gate With Finger Access Control Machine For Office Building

The Full Height Turnstile Gate equipped with a Finger Access Control Machine is an advanced security solution designed specifically for office buildings. This system combines robust physical barriers with biometric authentication to ensure secure and efficient access for authorized personnel.

Parameters:

1. Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz

2. Power Consumption: 100W

3. Temperature: -15 to 60 degrees

4. Humidity: <95%, without concretion

5. Passage Width: 600mm

6. Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)

7. Arm Open/Close Time: 2s

8. Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >10mA

9. Communication Interface: RS485 (Distance: <=1200m)

10. Working Environment: Indoors or outdoors with shed

11. Arm Turning: Uni-direction or Bi-direction

Finger Access Control Full Height Turnstile Gate For Office Building

Key Features:

  1. Full Height Design:

    • The full height structure provides a secure barrier that prevents unauthorized entry, making it ideal for high-security environments.

  2. Fingerprint Access Control:

    • Utilizes advanced fingerprint recognition technology to authenticate users, ensuring that only registered individuals can gain access.

  3. Quick and Efficient Access:

    • The fingerprint scanner allows for rapid identification, minimizing wait times and streamlining the entry process for employees.

  4. User-Friendly Interface:

    • An intuitive interface on the fingerprint access control machine simplifies operation, allowing users to register their fingerprints and manage their access easily.

  5. Real-Time Monitoring:

    • The system provides real-time data on access events, enabling security personnel to monitor foot traffic and identify any unauthorized attempts.

  6. Integration Capabilities:

    • Easily integrates with existing security systems, such as surveillance cameras, alarm systems, and management software, for a comprehensive security solution.

  7. Durable Construction:

    • Designed for both indoor and outdoor use, the turnstile is built with weather-resistant materials to withstand various environmental conditions.

  8. Data Storage and Reporting:

    • The system captures and stores access logs, allowing for detailed reporting on employee attendance and access patterns.

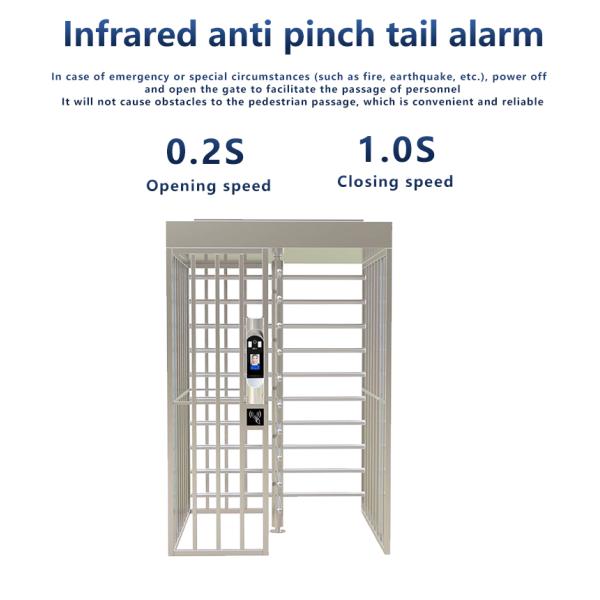

  9. Emergency Override:

    • Equipped with an emergency override feature that allows for manual operation in the event of a power failure or emergency situation.

  10. Customizable Settings:

    • Administrators can configure access permissions, manage user data, and set operational parameters based on the organization’s security needs.
Finger Access Control Full Height Turnstile Gate For Office Building

Benefits:

  • Enhanced Security: The combination of full height design and fingerprint authentication provides a high level of security, effectively preventing unauthorized access.

  • Improved User Experience: Quick fingerprint recognition enhances the user experience by allowing seamless entry without the need for keys or access cards.

  • Operational Efficiency: Automating the access control process reduces the need for security personnel at entry points, freeing them to focus on other critical tasks.

  • Comprehensive Data Management: The system’s reporting capabilities provide valuable insights into usage patterns, helping to optimize security and operational strategies.

  • Versatile Applications: Ideal for office buildings, corporate campuses, and other facilities requiring strict access control measures.

Finger Access Control Full Height Turnstile Gate For Office Building

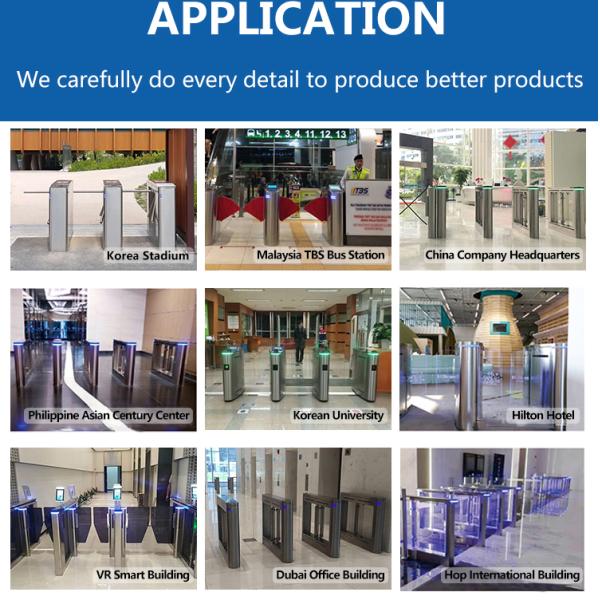

Applications:

  • Corporate Offices: Secure employee access to restricted areas within office buildings.
  • Data Centers: Control access to sensitive areas housing IT infrastructure.
  • Research Facilities: Ensure only authorized personnel have access to laboratories and secure zones.
  • Government Buildings: Manage entry to secure areas and enhance overall building security.
  • Finger Access Control Full Height Turnstile Gate For Office Building
Finger Access Control Full Height Turnstile Gate For Office Building

FAQs for Full Height Turnstile Gate with Face Recognition and QR Code

Q1: What is a Full Height Turnstile Gate?
A full height turnstile gate is a type of access control gate that extends from the floor to the ceiling, providing a secure barrier that allows only authorized individuals to enter a specific area.

Q2: How does the face recognition technology work?
The face recognition system captures images of an individual's face and compares them to a database of registered faces. If there is a match, access is granted.

Q3: Can users access the gate using both face recognition and QR codes?
Yes, the system supports dual authentication, allowing users to enter by either scanning a QR code or using face recognition, enhancing security and flexibility.

Q4: Is the turnstile suitable for outdoor use?
Yes, the turnstile is designed to be weather-resistant, making it suitable for both indoor and outdoor environments.

Q5: What happens if the face recognition fails?
If face recognition fails, users can gain access by scanning a QR code, ensuring a backup method for entry.

Q6: How does the system handle large volumes of users?
The system is designed for high throughput, allowing quick access via face recognition and QR code scanning, which minimizes wait times during peak hours.

Q7: Can the turnstile integrate with existing security systems?
Yes, the turnstile can be integrated with other security systems, such as CCTV and alarm systems, for a comprehensive security solution.

Q8: How is data stored and managed?
Data from access events, including facial recognition logs and QR code scans, is securely stored in a database, which can be accessed for reporting and analytics.

Q9: What measures are in place to ensure data security?
Data security is enhanced through encryption for data transmission and secure storage practices, protecting sensitive information from unauthorized access.

Q10: What is the emergency override feature?
The emergency override feature allows manual operation of the turnstile in case of a power failure or emergency situation, ensuring safe access and egress.
