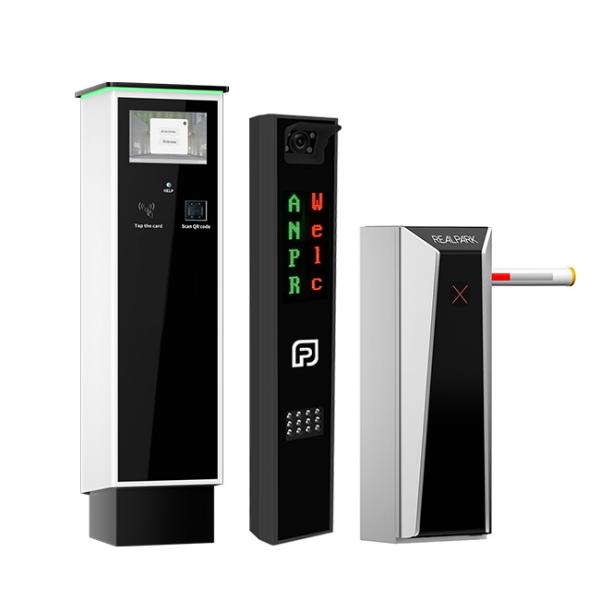

Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System
Specifications
Brand Name :
Realpark
Model Number :
RPL-POF-PS01
Certification :
CE and ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Welcome to contact us!
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100sets/Month
Delivery Time :
1-2 weeks
Packaging Details :
62*75*180cm/147kgs/set/Wooden
Products Type :
AutoPay Parking Station
Part Number :
RP-POF-PS01-STANDARD
Wooden Package Size :
L58*W73*H180cm
Installation :
Floor-standing
Usage :
Indoor or outdoor
Supported Currencies :
USD, EUR, CNY, JPY, GBP, etc.
Display :
19.1-inch LCD Screen
Operating System :
Windows/Linux
Weight :
180kgs
Supported Payment Methods :
Cash, credit/debit card, mobile payment
Product Type :
Self-service payment terminal
Payment Method :
Bank Card, ATM, QR Code, Coin, Banknotes
Card Type :
RFID Card Reader
Touchscreen Type :
Capacitive touch screen
Description

Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System


The Auto Pay Station equipped with a 19.1-inch Touch LCD is a cutting-edge solution designed to streamline the payment process for parking facilities. This system enables users to conveniently pay for parking tickets, enhancing efficiency and user satisfaction in modern parking management.


Smart Ticket Parking Payment System Configuration POF
No. Module Specifications Technical Parameters
1 Main control module Specify Motherboard: 10 RS-232 ports, 8 USB ports, 2 1000M network ports,
Display interface: 1VGA+1HDMI, integrated sound card, graphics card, network card, USB;
CPU: Intel I5 4th generation;
Memory: 4G,
Hard disk: SSD 120G.
2 Host chassis + power supply Specify 400W power supply
3 Display capacitive touch integrated screen Specify The screen size is 19 inches, the response time is 6ms, the brightness is 260 Nits, the contrast ratio is 700:1, and the viewing angle is 130 degrees horizontally and 110 degrees vertically.
4 Banknote circulation module Specify High capacity, high security bill validator
Proven field reliability
Easy maintenance with free firmware updates
Lockable, removable cash drawer for up to 1000 notes
Superior performance - auto-centering technology straightens notes before reading
Accepts notes up to 85mm wide and standard industry barcode tickets
Power supply:Required: 12V Standby: 400mA Running: 1.5A Peak: 3A
Protocol: SSP IF003 ccTalk
MDB Interface: USB RS232
Open Collector:Frame Options
Standard Frame: Metal Frame Self-aligning Frame Various lighting options
Cash drawer options: 500 notes 1000 notes
Note sizes:Width: 60 - 85mm Length: 115 - 170mm
MCBF: 200,000
5 POS three-in-one card reader Specify Reserved space for adding cover plate (model specified)
Pax-IM30, please check the 2 bank card POS machine data sheets in the PDF file
6 Barcode scanning Specify Image sensor: 1280H800V
Field of view: 43° horizontal, 50° diagonal, 28° vertical
Read rate: 50ms
Decodable symbols: 2D QR code, etc.
1D: UPC/EAN/CODE128/CODE32/CODE39/CODE93/UCC/UPCA, etc.
Reading accuracy: 5 mil
Reading distance: CODE 39 (12 mil): 20cm-55cm, UPC-A (16 mil): 10cm-60cm, QR code (payment code): 5cm-130cm
Contrast: >25%
Deflection angle: horizontal ±55°, vertical ±55°, rotation 360°
Reading mode: trigger/sensing/continuous
Communication interface: Standard: USB, optional: TTL/RS485/RS232
Dimensions: length, width, height (65mm, 64mm, 29mm)
Weight: 36g
Operating voltage: 4.75V-12.6V
Rated power: 0.80W
Operating current: 160mA
Standby current: 90mA
Reading material: screen, paper, metal, PVC film
Indicator: two-color indicator
7 Intercom system Specify Intercom (to be confirmed later)
8 Printer module Specify Printing method: Line thermal printing
Print density: 8 dots/mm
Printing direction: Paper feed direction
Printing speed: 150 mm/sec (max)
Paper width: 79.5±0.5 mm
Effective printing width: 72 mm
Paper handling: Automatic paper cutting
Line width: 3.75 mm
9 Coin circulation module Specify Five structural parts are reserved for sealing
Mixed coin hopper and recycler
Requirement: 24V Standby: 200mA Running: 3A
Peak: 6.5A
Protocol: SSP ccTalk
Interface: USB option open collector
Coin size: 18 - 28.5mm Thickness: 1.65 - 3.2mm
Coin capacity: 1500 (€1) or 1300 (£1) or 800 (£2)
Multiple denominations: up to 11 denominations
Mixed coin capacity: 200 (€2) + 750 (€1) + 500 (50c)
Payout speed: up to 12 coins per second
MCBF: 200,000
10 Alarm module Specify Security warning system (access control device + control board + sensor + alarm)
11 LED light Specify One set of breathing lights, one set of blue lights (with control board)
12 Combined power supply module Specify Provide 12V, 24V (110V 50HZ) power for printers and other components
13 Sound effect system Specify One on each side, effective output 25W.
14 Cooling system Specify 4 fans with dust screen
15 Tempered glass panel Specify Thickness: 3mm
16 Banknote and coin password safe Specify Factory settings: User password "1111", Administrator password "00000000".
Unlock: Enter the password you set, the password length should be 4-10 digits (if not set, please use the factory password). Each digit entered will have a sound prompt to indicate validity. After entering the password, press the OK button
17 UPS power supply module Specify 1000VA, USB interface, with program control
18 Complete machine cabinet (outdoor powder) Specify Hall-style structure, with hot steel plate on the outside. Thickness of the whole machine shell: 1.5-2.0mm Appearance: novel, beautiful, and noble; Material: hard and thick, not easy to deform; Internal structure: modular maintenance method, simple and convenient maintenance; wiring is standardized and neat. Contains safe. Universal key for cabinet. (Note outdoor powder)
19 Complete machine cabinet multi-point linkage lock Mechanical multi-point lock Multi-point lock for whole cabinet
20 Complete machine accessories Circuit breakers, socket strips, wires, etc.
21 Communication method TCP/IP Method


Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System


Auto Pay Station Features:

  • Large 19.1-Inch Touch Screen: Provides an intuitive and user-friendly interface, making the payment process quick and easy for users of all ages.
  • Multiple Payment Options: Supports various payment methods, including credit/debit cards, mobile wallets, and NFC payments, allowing for flexible transaction choices.
  • Real-Time Transaction Processing: Ensures instant payment processing and updates availability of parking spaces, providing operators with accurate data.
  • Durable Design: Constructed to withstand outdoor elements, the Auto Pay Station is suitable for both indoor and outdoor installations.
  • Built-in Printer: Generates clear parking tickets or receipts on-demand, ensuring users receive documentation of their transactions.
  • Customizable Interface: Allows operators to brand the interface and include specific instructions or promotional messages tailored to their facility.
  • Robust Security Features: Incorporates advanced security protocols to protect sensitive payment information and prevent unauthorized access.
  • Remote Monitoring Capabilities: Operators can monitor system performance and transaction data from any location, improving management efficiency.
  • Comprehensive Reporting Tools: Provides operators with detailed reporting on transaction history and usage patterns for informed decision-making.
  • Scalable Solution: Designed to accommodate different sizes of parking facilities, making it suitable for a variety of settings.

Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System

Smart Parking Payment Station Paymeng System Benefits:

  • Enhanced User Experience: The interactive touch screen and multiple payment options streamline the payment process, reducing wait times.
  • Operational Efficiency: Real-time data processing and remote monitoring capabilities enable parking operators to manage their facilities more effectively.
  • Increased Revenue Management: Detailed reporting helps operators optimize pricing strategies and maximize revenue potential through data-driven insights.Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System

Parking Ticket Payment Machine Applications

  • Public Parking Garages
  • Shopping Malls and Retail Centers
  • Airports and Transit Stations
  • Event Venues and Arenas
  • Corporate Campuses and Institutional Parking Areas


Auto Pay Station with 19.1-inch Touch LCD for Smart Ticket Parking Payment System

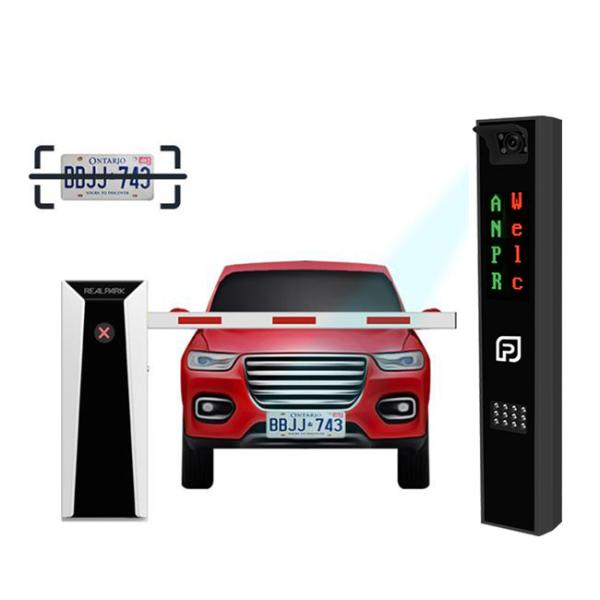

Car Plate Recognition Camera System Automatic Payment System FAQ


Q1: What is the main function of the Auto Pay Station?
A1: The Auto Pay Station allows users to conveniently pay for parking tickets using various payment methods, providing a seamless transaction experience.

Q2: What payment methods does the station support?
A2: The station supports credit/debit cards, mobile wallets, and NFC payments, offering flexibility to users.

Q3: Is the touch screen interface easy to use?
A3: Yes, the 19.1-inch touch screen is designed for intuitive navigation, making the payment process user-friendly.

Q4: Can this pay station operate outdoors?
A4: Yes, the Auto Pay Station is built to withstand outdoor conditions, making it suitable for various environments.

Q5: Does the kiosk print parking tickets?
A5: Yes, it includes a built-in printer that generates clear parking tickets or receipts as needed.

Q6: How does real-time processing work?
A6: The system processes payments instantaneously, updating transaction records and parking availability immediately.

Q7: Can operators monitor the system remotely?
A7: Yes, operators can access system performance and transaction data from remote locations for efficient management.

Q8: What kind of reporting features are available?
A8: The kiosk provides comprehensive reporting tools, allowing operators to track transaction history, revenue, and usage patterns.

Q9: Is the user interface customizable?
A9: Yes, the interface can be tailored to reflect the parking facility’s branding and specific instructions for users.

Q10: How can I acquire the Auto Pay Station for my facility?
A10: You can request a quote through our website or contact our sales team for tailored solutions based on your specific requirements.


The Auto Pay Station with 19.1-Inch Touch LCD is an innovative solution for modern parking management, enhancing user experience through streamlined payment processes and enhancing operational efficiency for parking operators.
