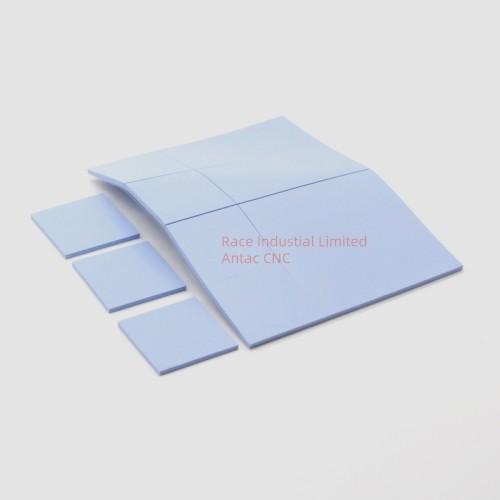

Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Conductive Silicone Thermal Pad High Temperature Silicone Rubber Heat Sink Thermal Pad
Specifications
Brand Name :
Race
Model Number :
GTP010~GTP012
Certification :
ISO9001 , ISO14001, TS16949
Place of Origin :
China
MOQ :
Low MOQ
Price :
Negotiable
Payment Terms :
30% TT in advance,the balance payment is paid before shipment.
Supply Ability :
1000000/Day
Delivery Time :
7days
Packaging Details :
As customer requirements
Continuos Use Temp :
-40 To 160℃
Dielectric constant :
3.49~9.8@1MHz
Thermal Conductivity :
0.8~15W/(m·K）
Thickness Range :
0.020-0.200mmT
Breakdown Voltage :
≥10KV/mm
Specific heat capacity 25℃ :
1.0~0.5J/(kg•℃)
Features :
Soft, flexible, and easy to cut
Standard :
ISO14001, ISO9001, TS16949
Description

Product Description:

Our silicone thermal pad is made of high - quality organosilicon rubber as the base material, which has excellent chemical stability and physical flexibility. During the production process, through advanced mixing technology, high - purity and high - thermal - conductivity ceramic filler particles are evenly dispersed in the silicone matrix. The perfect combination of the two creates the product's excellent thermal conductivity performance, with a thermal conductivity coefficient of 0.8~15W/(m·K), far exceeding most similar products in the industry. This means that it can transfer heat from the heat source at a faster speed and higher efficiency, significantly reducing the operating temperature of the equipment, greatly enhancing the working efficiency and stability of the equipment, and laying a solid foundation for the stable operation of high - power and high - performance equipment.
The unique formula design of the product gives it extraordinary flexibility and enables it to closely adhere to various complex and irregular surfaces. Whether it is fine concave - convex textures or narrow gaps, it can achieve seamless filling, greatly reducing thermal resistance and ensuring smooth heat transfer. At the same time, the silicone thermal pad also has excellent electrical insulation performance, with an insulation resistance as high as [specific value], which can effectively prevent electric leakage and provide a solid guarantee for the safe operation of the equipment. In addition, its high and low temperature resistance performance is also very excellent. In an extremely cold environment of - 50 °C, it still maintains good flexibility and elasticity and will not crack; in a high - temperature environment of 200 °C, it will not experience aging, deformation or performance degradation, and can always maintain stable performance.

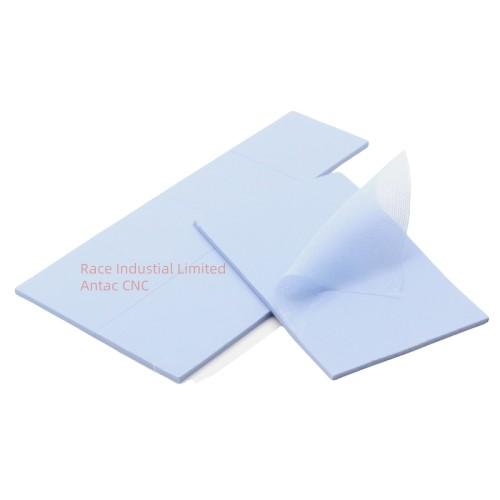

In terms of installation, this silicone thermal pad comes with a high - performance adhesive coating. This coating is developed through a special formula, which not only adheres firmly but also leaves no residue when removed and does not cause any damage to the equipment surface. The installation process is simple and convenient. Just gently tear off the thermal pad from the release paper, align it with the position between the heat source and the heat sink, and fit it precisely, which greatly saves installation time and labor costs and improves production efficiency.
Based on the above advantages, our silicone thermal pads are widely used in various fields with high requirements for heat dissipation. In the field of electronic equipment, such as laptops, tablets, smartphones, etc., it can effectively solve the heat dissipation problems of key components such as chips and ensure that the equipment still maintains smooth performance under long - term high - load operation; in communication base stations, it can help base station equipment dissipate heat efficiently and ensure stable signal transmission; in the automotive electronics field, whether it is the engine control system, battery management system, or in - vehicle entertainment system, reliable heat dissipation can be achieved relying on it, improving the safety and reliability of automotive electronic equipment; in the LED lighting field, it can quickly conduct out the heat generated by LED chips, extend the service life of lamps, and improve the lighting effect.
In summary, our silicone thermal pad is a high - quality heat - dissipation product integrating high performance, easy installation, and high reliability, and is an ideal choice to ensure efficient heat dissipation and stable operation of various equipment.

Features:

  • Product Name: Silicone Thermal Pad
  • Thickness Range: 0.020-0.200mmT
  • Operating Temperature: -40°C To 200°C
  • Colour: Grey, Blue, Pink, Brown
  • Free Samples: Yes
  • Fire Performance: V-0
  • Material: Conductive Silicone Rubber
  • Application: Heat Sink Thermal Pad

Technical Parameters:

Product Name Heat Sink Thermal Pad
Material Conductive Silicone Rubber, High Temperature Silicone Rubber
Free Samples Yes
Thickness Range 0.020-0.200mmT
Thickness 0.3mm-15mm
Fire Performance V-0
Dielectric Constant 3.49~9.8@1MHz
Operating Temperature -40°C To 200°C
Specific Heat Capacity 25℃ 1.0~0.5J/(kg•℃)
Volume Resistivity 1.0*10^13Ω*cm
Density 3.0±0.5 G/cm³
Hardness Shore 30±5

Applications:

The Race Silicone Thermal Pad, model numbers GTP010~GTP012, is a high-quality product made in China with certifications such as ISO9001, ISO14001, and TS16949. This product is perfect for use in high-temperature environments due to its high temperature silicone rubber material. Its volume resistivity of 1.0*10^13Ω*cm and hardness of Shore 30±5 make it suitable for use in a variety of applications.

The Race Silicone Thermal Pad is also conductive, making it an ideal product for use in electronic devices such as CPUs. Its moldability for complex parts allows for a customized fit to ensure maximum efficiency.

With low MOQ and negotiable pricing, the Race Silicone Thermal Pad is an affordable option for businesses of all sizes.

Whether used in the automotive, aerospace, or computer industries, the Race Silicone Thermal Pad is an essential product for ensuring the safe and efficient operation of equipment. Its packaging details can be customized to meet customer requirements, and delivery time is typically 7 days.

Payment terms for the Race Silicone Thermal Pad are 30% TT in advance, with the balance payment paid before shipment. With a supply ability of 1000000 per day, the Race Silicone Thermal Pad is readily available for all your business needs.

So, whether you're looking for a product to use in a high-temperature environment or a conductive silicone rubber for your CPU, look no further than the Race Silicone Thermal Pad, made in Dongguan, China.
