SMA 4G LTE Indoor Antenna WIFI Router Support LTE FDD 800 900 1800 2100 2600MHZ
SMA 4G LTE Indoor Antenna WIFI Router Support LTE FDD 800 900 1800 2100 2600MHZ
SMA 4G LTE Indoor Antenna WIFI Router Support LTE FDD 800 900 1800 2100 2600MHZ
SMA 4G LTE Indoor Antenna WIFI Router Support LTE FDD 800 900 1800 2100 2600MHZ
Specifications
Brand Name :
BOGES
Model Number :
BGS-AN4000-10140B
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Supply Ability :
10K Per Day
Delivery Time :
10 Days
Packaging Details :
PE Bag / Carton
Frequency :
700 ~ 2700 MHz
S.W.R :
2.0 Max.
Polarization Type :
Vertical
Color :
Black or White
Maximum Input Power :
10W
Price :
Negotiable
Description

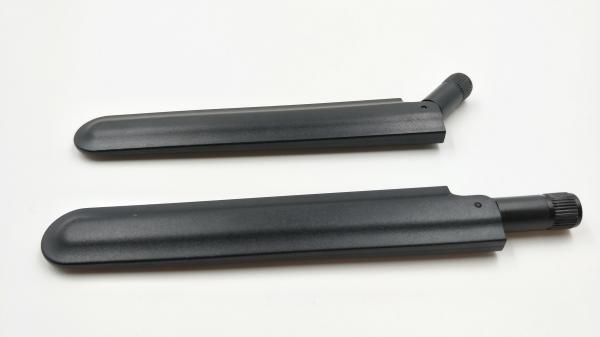

SMA 4G LTE Antenna WIFI Router Support LTE FDD 800 900 1800 2100 2600MHZ

  • Designed for Use with 4G LTE Modules and Devices that Require the Highest Possible Efficiency and Peak Gain to Deliver BEST in Class Throughput on All Major Cellular (2g/3g/4g) Bands Worldwide for Access Points, Terminals and Routers
  • Frequency Range (MHz):698-960/1710-2170/2500-2700
  • Wide Band Support: GSM 800/900MHz, 2.4G(WIFI), 3G, 4G LTE
  • Gain (dBi):5dBi SMA Male connector (with a PIN Inside)
  • Muhlti-Band, High-Gain Cellular Antenna

Specification

A. Electrical Characteristics
Frequency 700 ~ 2700 MHz
Impedance 50 ohm
S.W.R 2.0 Max.
Peak Gain 2 dB
Return Loss >= 10 dB
B. Material & Mechanical Characteristics
Cable Type RG 178 Cable
Connector Type RP-SMA Male; SMA Male
Body ABS, Black
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ +80˚C
