RFP Antenna 4G LTE Antenna 746 - 806MHz Omni Antenna designed for Verizon LTE Upper Band
RFP Antenna 4G LTE Antenna 746 - 806MHz Omni Antenna designed for Verizon LTE Upper Band
Specifications
Brand Name :
BOGES
Model Number :
BGS-AN4000-201016W
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Supply Ability :
20K Per Day
Delivery Time :
10 Days
Packaging Details :
PE Bag / Carton
Frequency :
746 ~ 806 MHz
S.W.R :
1.5 Max.
Impedance :
50 OHM
Peak Gain :
6 dB
Length :
1 meter
Price :
Negotiable
Description

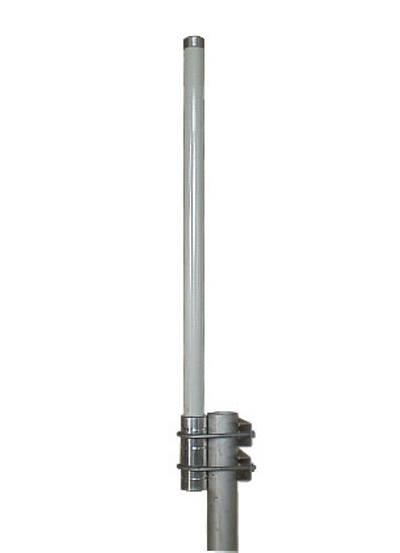

RFP Antenna 4G LTE 746-806MHz Omni Antenna designed for Verizon LTE Upper Band

Features

  • 6dB, 40"
  • All Weather Anodized Aluminum
  • N-Female Connector
  • Solid Aluminum Elements
  • Heavy duty mounting hardware

Applications

  • Verizon LTE
  • 4G
  • 750Mhz Upper Band
  • Point-to-Multipoint Applications

Specifications

Frequency
746-806MHz
Gain
 6dBi
Polarization
Vertical
Horizontal Beam
360º
Vertical Beam
30º
VSWR
<1.5
Fronto Back Ratio
>15dB
Impedance
50 ohm
Input Max Power
200 W
Lightning Protection
DC Ground
Connector
N-Female
Size
 39.37 in / 100 cm
Radiating Elec. Material
Cu Ag
Radome Material
 Fiberglass
Operating Temperature
-40 to 85º C
-40 to 185º F
Diameter of Installation Pole
1.2-2.3 in
30-55 mm
Weight
3.3 lbs
1.5 kg
Wind Loading
100 MPH
120 MPH
7 lb
10 lb
