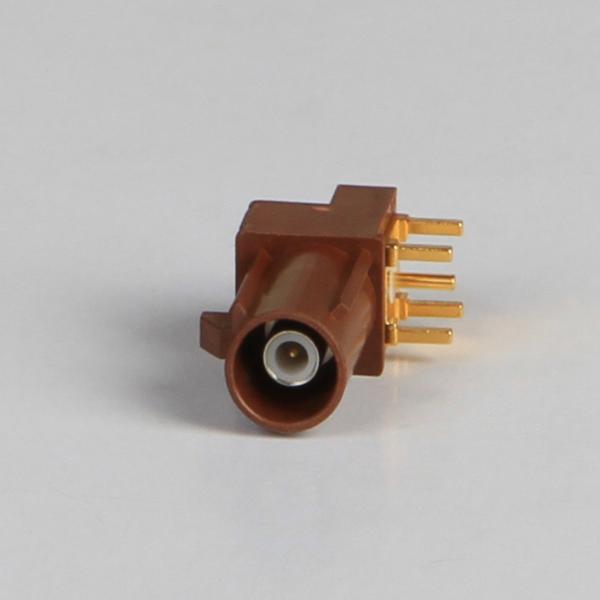

Post Terminal PCB Mount Fakra Connector Male 4 Stud For Analog Radio 335V
Post Terminal PCB Mount Fakra Connector Male 4 Stud For Analog Radio 335V
Specifications
Brand Name :
BOGES
Model Number :
BGS-900-0002
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Supply Ability :
10K Per Day
Delivery Time :
10 Days
Packaging Details :
PE Bag / Carton
Working Voltage :
335V
Frequency :
DC ~ 4 GHz
Impedance :
50 OHM
VSWR :
1.3 Max.
Machanical Life :
>500
Price :
Negotiable
Description

Fakra Connector Male For PCB Mount with Post Terminal 4 Stud Applied in Analog Radio

Product Design Level:Universal connector (Level 2)

1. Working Voltage:335V

2. Temperature Range :-40°C～＋85°C

3 . Frequency Range:DC-4GHz

4. Impedance:50Ω

Technical Parameters:

1 Electrical Properties: VSWR:﹤1.3

2. Contact Resistance:Center Contact≤6mΩ; Outer Contact≤1mΩ

3. Insulation Resistance:1000MΩ

4. Medium Pressure:1000V (Conform to the MIL-PRF-39012 paragraph 3.17)

Mechanical Properties :

1. Shell Retention:＞110Ｎ (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

2. Insertion force:≤ 25N (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

3. Pull out the output: ≤25N (Conform to the MIL-PRF-39012 paragraph3.5 Axial Force)

4. Mechanical life:＞50 cycles(frequency 10 cycles/MIN) (Conform to the MIL-PRF-39012 paragraph 3.15)

5. SMB connectors mechanical life:＞500 cycles(frequency 12 cycles/MIN)

Environmental Performance

1. Temperature Range:environment temperature -40°Ｃ～105°Ｃ

2. Salt Fog:＞48Ｈ

3. Resistance to Moisture:Relative humidity＋40°Ｃ When it is up to 95％

Drawing

Post Terminal PCB Mount Fakra Connector Male 4 Stud For Analog Radio 335V
