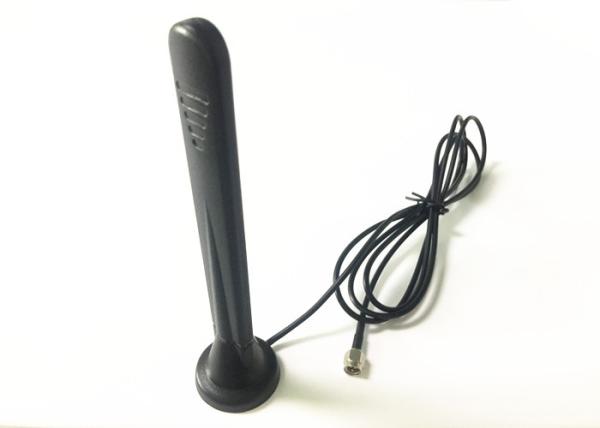

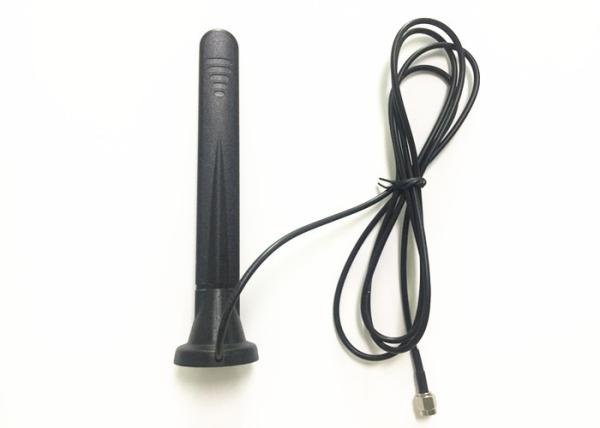

Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM4000-35155B
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
20K Per Day
Delivery Time :
12 Days
Packaging Details :
PE Bag / Carton
Frequency :
700 ~ 2700 MHz
S.W.R :
2.5 Max.
Cable length :
1.5M
Cable :
RG174
Connector :
SMA MALE
Description

Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable

Detail Product Description

Frequency: 700~ 2700 MHz

S.W.R: 2.5 MAX

Impedance:　50 ohm

Peak Gain: 5 dB

Connector: SMA Connector.

Application:

1.Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System

Specification

A. Electrical Characteristics

Frequency

700 ~ 2700 MHz

Impedance

50 ohm

S.W.R

2.5 Max.

Peak Gain

5 dB

Return Loss

>= 10 dB

B. Material & Mechanical Characteristics

Cable Type

RG 174 Cable

Connector Type

SMA Connector

Body

ABS, Black

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C

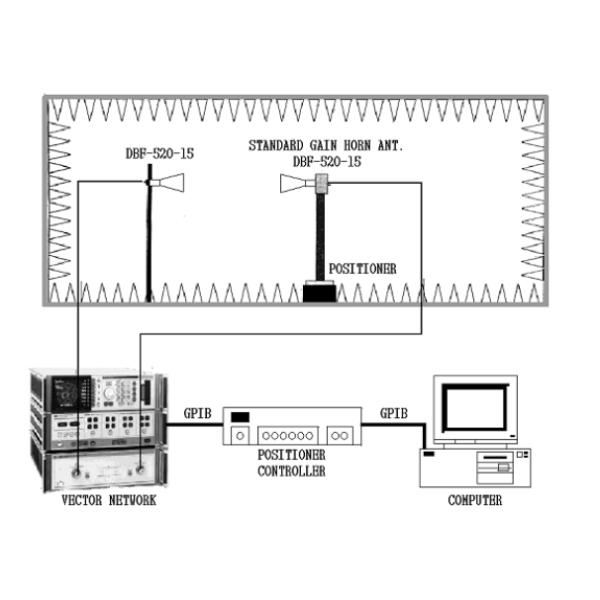

Measuring Method


A 50Ω coaxial cable is connected(soldered) to the 50Ω point, at the duplex-
filter on the main PCB. The connection of the coaxial cable shall be done to
introduce a minimum of mismatch. As much as possible the coaxial cable
arrangement shall prevent influences from induced currents on the cable.
In the other end, the coaxial cable is connected to a network analyzer.
The measurement is performed at room temperature. The handset,
including the PCB, must not in any significant way differ from the mass
production, i.e. the antenna feeding network has to be equivalent to the
feeding network in mass production. The specification shall be met in the
entire frequency band.

Vertical Magnetic Omni Directional 4g Lte Antenna SMA Male Connector With RG 174 1.5M Cable

Drop

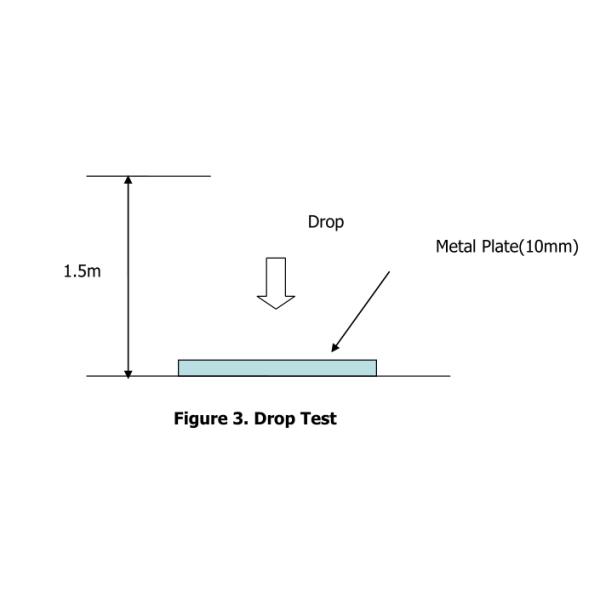

Drop in retracted mode(3cycles)
