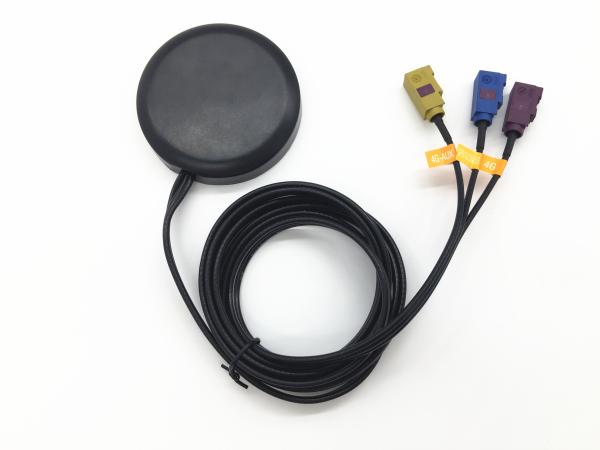

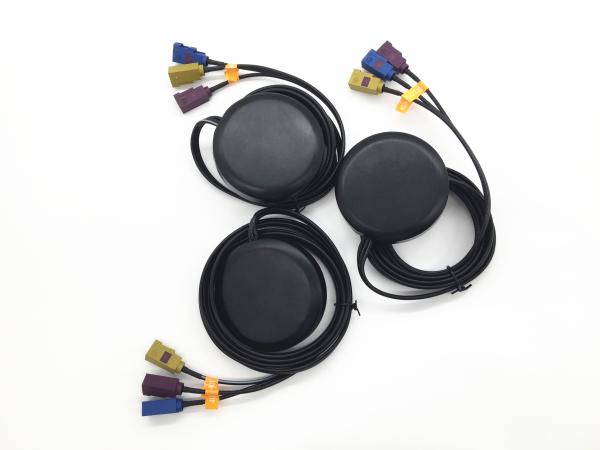

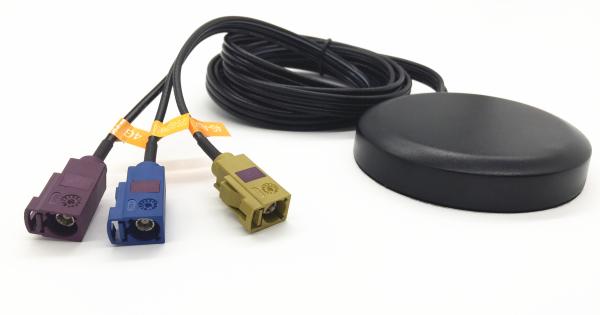

3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
Specifications
Brand Name :
BOGES
Model Number :
BGS-GPS+4G-Fakra-1.8M
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
GPS Frequency :
1575.42MHZ
Glonass Frequency :
1602MHZ
4G Frequency :
699-960MHZ 1710-2690MHZ
Voltage :
3V - 5V
Connector :
Fakra C-D-K
Cable :
RG 174 Cable Black
VSWR :
2.0 MAX
Cable length :
1.8M or customized
Description

3 in 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna for GPS Navigation


GPS Antenna Specification:

Center Frequency: L1:1575.42MHz±1.023 MHz

Band Width: ＞9MHz

Polarization: RHCP

Gain: 2dBic(Zenith)

V.S.W.R: ＜1.5

Impendance: 50Ω

Axial Ratio: 3dB(max)

LNA Gain: 28±2dB

LNA Noise Figure: ＜1.5

LNA Ex-bandAttenuation: 12dB@CF+50MHz/16dB@CF-50MHz

LNA V.S.W.R: ＜2.0

LNA Supply Voltage: 2.2~5V DC

LNA Current Consumption: 5~15mA

4G LTE Antenna Specification:

Frequency Range: 698~960/1710~2700MHz

V.S.W.R: ＜3.0

Polarization: Linear

Gain: 2.0dBi

Impendance: 50Ω

Mechanical:

Cable: RG174

Cable Length: 1.8 Meters

Connector: Fakra Male Connector

Material: ABS

Mounting Method: Adhesive/Magnet

Environmental:

Operating Temperature: -40℃~+85℃

Relative Humidity: Up to 95%

Ingress Protection: IP67

Vibration: 10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly: ROHS Compliant

3 In 1 Vehicle Truck RV GPS 4G LTE Magnetic Mount Combined Antenna For GPS Navigation
