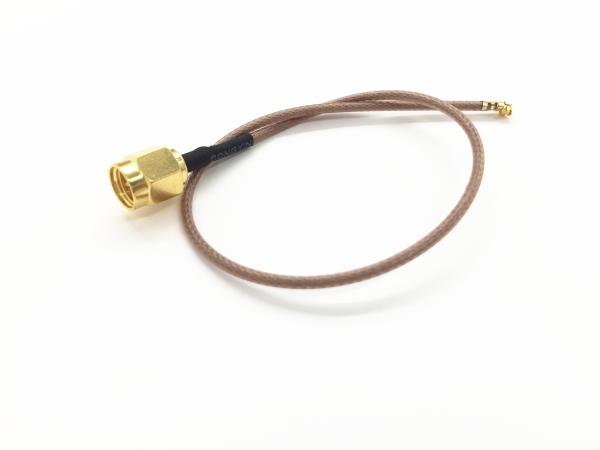

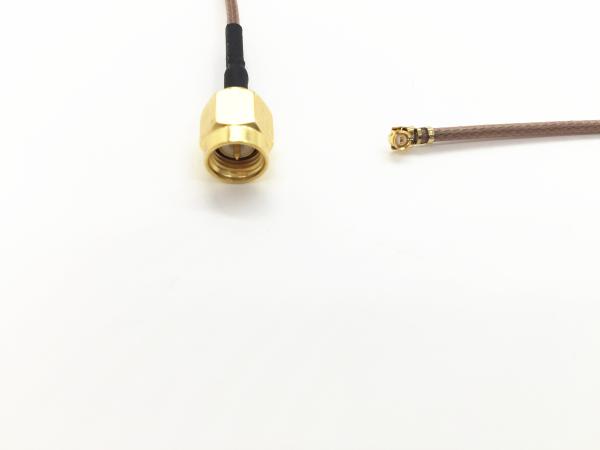

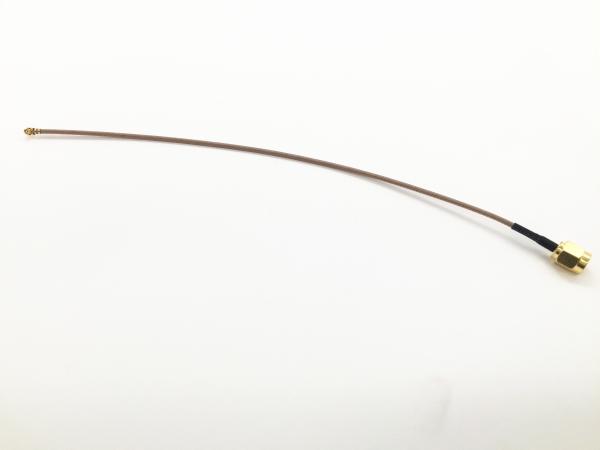

Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
Specifications
Brand Name :
BOGES
Model Number :
BGS-IPEX1-178-SMA -001
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
10K Per Day
Delivery Time :
15 Days
Packaging Details :
PE Bag / Carton
Cable type :
RG178
Cable color :
Brown
Connector :
MHF 1 to SMA / RP SMA
Cable length :
90MM or Customized
Impedance :
50 ohm
Frequency range :
DC-6GHz
Description

Mini PCI to SMA Male Pigtail Antenna Wi-Fi Coaxial RG-178 Low Loss Cable


To maximize signal power, ensure the highest quality of all types of connected frequency equipment, and also eliminate the attenuation of signal power in a cable of this length, we have specially used high-quality copper RG-178 low loss cable.
IPEX (IPX) MHF Connector is equivalent of Hirose U.FL connector. IPEX MHF is the generation one of IPEX micro RF coaxial connector. MHF connector is designed to have 2.5mm mating height and can operate 0~6GHz frequency.

PRODUCT FEATURES:


- Product name : U.FL Mini PCI to SMA Female Pigtail Coaxial low loss RG-178 cable 5.5 "(14 centimeters) length;
- Connectors : U.FL Mini PCI to SMA Female;
- Cable length : 5.5"(14cm / 140mm);
- Cable type :coaxial low loss RG-178 cable;
- Impedance : 50 Ω;
- Operating temperature : -40°С ~ +85°С.

Type name

U.FL Cable Assembly with RG178 cable with SMA

Impedance

50Ω

Vibration

100m/S2 (10~500Hz)

Frequency Range

DC-6GHz

Insertion Loss

≤ 0.15dB / 6GHz

Withstanding Voltage

4000V r.m.s at sea level

Working Voltage

2700Vr.m.s at sea level

Average power

3Kw max

Insulation Resistance

≥ 10000 MΩ

Center conductor retention force

≥ 6N

Durability

≥ 500(cycles)

Contact resistance:

CenterContact ≤ 0.4mΩ

Outer Contact ≤ 1.5mΩ

Voltage Standing Wave Ratio:

Straight

≤ 1.20/6GHz

Right angle

≤ 1.35/6GHz

Our Services


1) factory sell directly
2) long-term,strong and steady supplying ability
3) delivery time: 1-2 working days
4) do as your requirements on package,brand or other designs
5) strong sales promotion policy
6) ex-factory price and competitive price
7) we can provide you a good survice
8) replying you asap.(will reply you 10-20 mins on the basis of getting your require.)

Mini PCI To SMA Male Pigtail Antenna Wi - Fi Coaxial RG -178 Low Loss Cable
