A. Electrical Characteristics

Frequency

2400 - 2700 MHz

Impedance

50 ohm

S.W.R

2.0 Max.

Peak Gain

8 dB

Return Loss

>= 10 dB

B. Material & Mechanical Characteristics

Cable Type

RF 178

Connector Type

N Connector Male

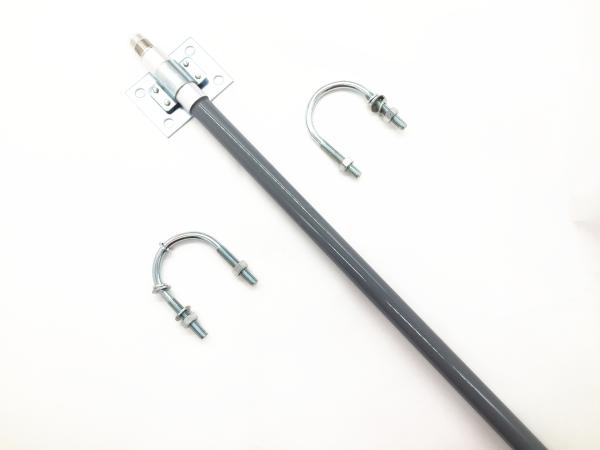

Body

FRP, White

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A
Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz
3 directions; 2 hours for each direction

1. No Visual Damage
2. Frequency Tol.<= 5%

M2

Random
Drop

Height: 1.5 Meter;
3 directions; 1 time for each direction

1. No parts separated
2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A
Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB
2. No Visual Damage

M4

Terminal-
Pull Test

MIL-STD-202G, 211A, cond. A
Holding with individual specification; force applied
to axis of terminal

1. Directive DUT specification
2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,
surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B
Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;
Time: 48 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B
Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)
Cycles: 24

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A
Temp: 85°C; Time: 96 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC
