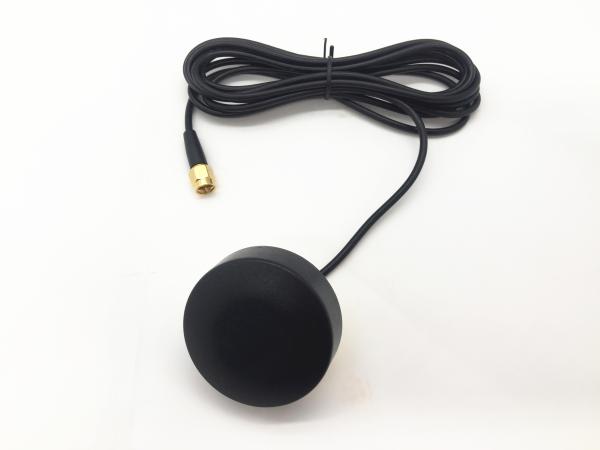

Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable

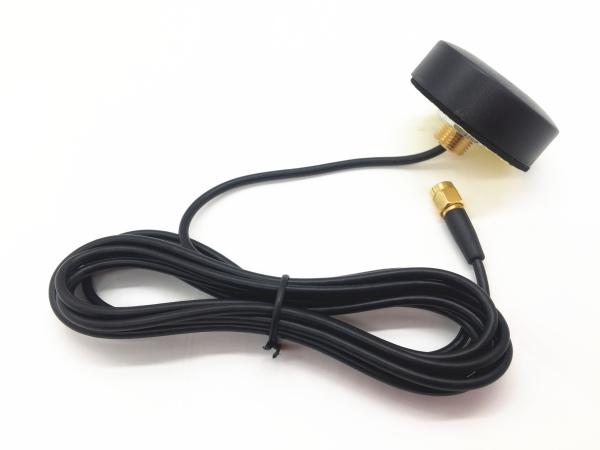

Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM1575-4615-1M
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz
Impedance :
50 OHM
S.W.R :
1.5 Max.
Peak Gain :
3 dB
Size :
46* 14.5 mm
Cable :
RG 174 Cable Black
Description

Active Gps Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable

Dielectric Antenna

Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)

Polarization:RHCP

GSM Antenna

Center Frequency(MHz):850/900/1800/1900

VSWR:2.0:1
Impedance(Ω):50

Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz

LNA/Filter

LNA Gain(Without Cable) :28 dBi Typical

Noise Figure(dB):1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0

DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max

Mechanical

Weight(gram )<150

Size(mm):Φ46×14.5
Cable GPS(m):RG174 2,5 long etc.
GSM(m):RG174 2,5 long etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.

Mounting:Screw(Hole/Roof)

Housing:Black

Environmental

Working Temp:-40℃~+85℃

Storage Temp:-45℃~+100℃

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Weatherproof:100%Waterproof

S.W.R

Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable

Radiation Pattern

Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
