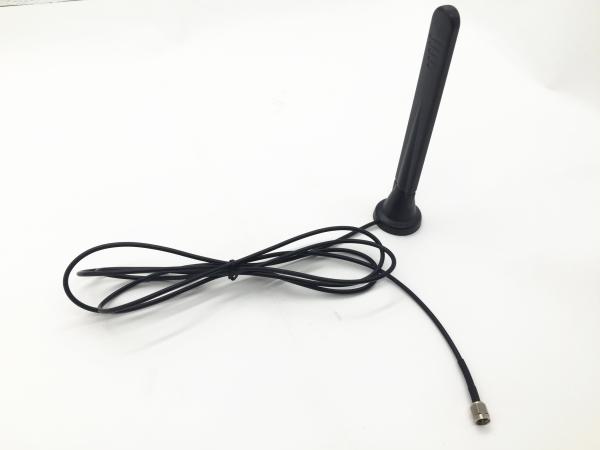

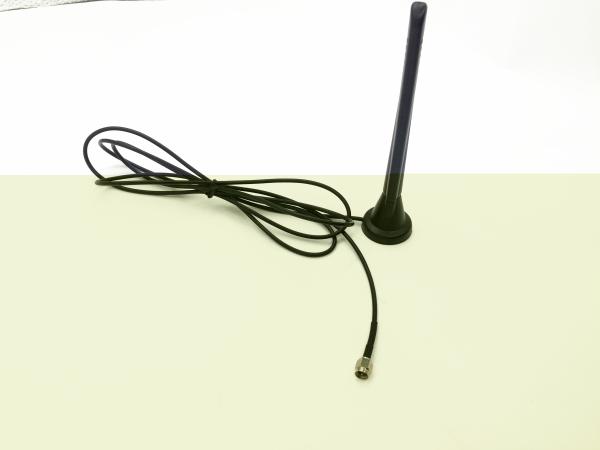

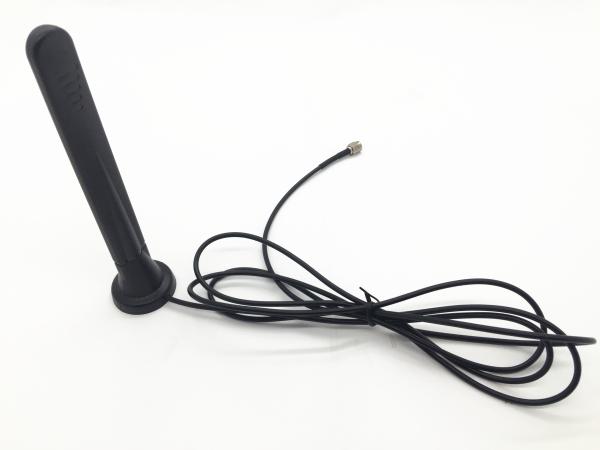

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM4000-35155B-1
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
20K Per Day
Delivery Time :
12 Days
Packaging Details :
PE Bag / Carton
Frequency :
700 ~ 2700 MHz
S.W.R :
2.0 Max.
Cable length :
1.5M
Cable :
RG174
Connector :
SMA MALE
Impedance :
50Ω
Description

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector

Detail Product Description

Frequency: 700~ 2700 MHz

S.W.R: 2.0 MAX

Impedance:　50 ohm

Peak Gain: 3 dBi

Connector: SMA Connector.

Application:

1.Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System

Specification

A. Electrical Characteristics

Frequency

700 ~ 2700 MHz

Impedance

50 ohm

S.W.R

2.0 Max.

Peak Gain

3 dBi

Return Loss

>= 10 dB

B. Material & Mechanical Characteristics

Cable Type

RG 174 Cable

Connector Type

SMA Connector

Body

ABS, Black

C. Environmental

Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C

Characteristics and Reliability Test:

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector

VSWR

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector

4G LTE Magnetic Omni Directional Antenna RG 174 With SMA Male Connector

Measuring Method


The antenna is placed in the handset or an equivalent test fixture.
The handset is dropped with the antenna downwards onto a metal plate.
