Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector
Specifications
Brand Name :
BOGES
Model Number :
BC-PG-4P-006
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3,000,000 Pcs Per Month
Delivery Time :
15Days After Receive Deposit
Packaging Details :
PE Bag / Carton
Application :
PCB
Plunger material :
Brass
Gender :
Male
Plating :
Gold
Spring :
Spring wire
Type :
Pogo pin
Description

Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector​

Product Description :

--- Spring loaded pin(single) for PCB , ICT , FCT testing , etc
--- Pogo pin ( connector ) to establish a ( usually temporary ) connection between two printed circuit

boards for charing , locating , Battery , Semiconductor & interconnect Applications
--- Double ended probe or BGA & semiconudtion testing
--- Universal pin without spring , coatingpin , LM pin with QZ & VZ series
--- High current probe , Switch probe , Capacitance needle
--- Terminal & receptacle / socket
--- Other related electronic components , Jig locks , POM , Iron hinge , etc

Different types :

- SMT Type

- DIP Type

- Flat SMT Type

- Plug DIP Type

- Right angle Type

- Double - Ended Type

- Solder Cup Type

- Thread Type

Application :

1) PCB board

2) Digital camera / Medical products / Printer cartridges

3) Golf handle / Electric vehicles / Telephony applications

4) Cardiac defibrillator / Car charging / Air purifier

5) LED flat luminaries / LED flash light / Tablet / Laptop / PC

6) Power bank / Digital product / Small household electrical application

7) Charging products / Signal transmission products etc

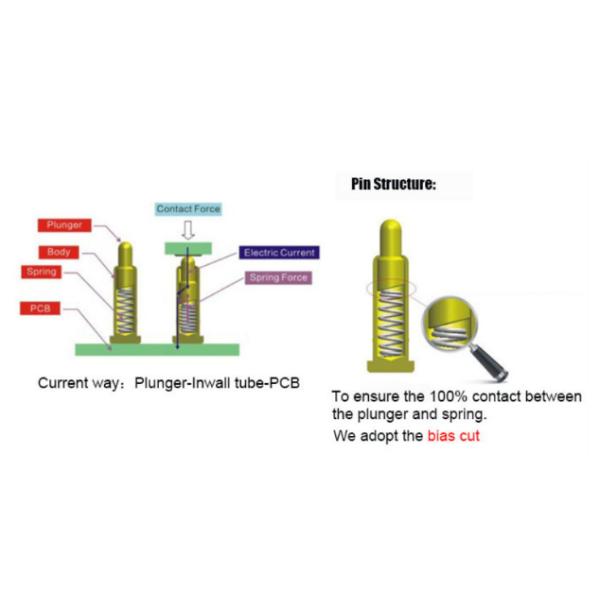

Specifications :

Material &Plating:
Plunger: Brass,plating min 0.25um Au over Min 1.4um Ni.
Barrel:Brass,plating Min 0.1um Au over 1.4um Ni.
Spring:SUS or SWP
Plastic is high temperature resistant material
Plating:Gold,Silver,Palladium-Nickel
Parameters:
Rated Current:2.0A
Rated Voltage:12V
Life:exceed 50,000 recycling
Working Temp: From -25℃ to +75℃ 90% R.H,Max From -25℃ to +75℃ 90% R.H,Max
Storage Temp.:From -40℃ to +85℃ 90% R.H,Max
Electric Perfermance:
Contact resistance:30mohm Max.at working height

Insulation resistance:500V DC with housing insulation or insulation in one min>100MΩ

in AC condition
Voltage resistance:the max electricity leakage
Mechanical:
Contact normal force:operating point is more than 60gf
Retention:0.3kgf/pin
Durability:50000 times in spring force
Environment:
Humidity range:10% RH to 90% RH
Salt spray:48H
Above specs are our standards,it can be customized by your own requests

Screw Brass Spring Loaded Pins For PCB Testing Electronic Connector

About us :

1. We specialize in RF connectors , RF cable assembly and RF connectors . The main products we manufacture are RF connectors, MCX , MMCX , SMA , SMB , N , Pogo pin and RF connector cable . Our products are sold to different areas of overseas markets .

2. We have passed ISO9001 quality certification and our products
antenna connector comply with RoHS requirement .

3. We have professional technical development team . we have advanced NC processing equipment and precise test equipment .

4. Our principle is to meet customers’ requirement by good service and high-quality products . The prices of products….. are very competitive and reasonable .

5. We are committed to providing the best products….. to our customers with quickest delivery and best price .


Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
