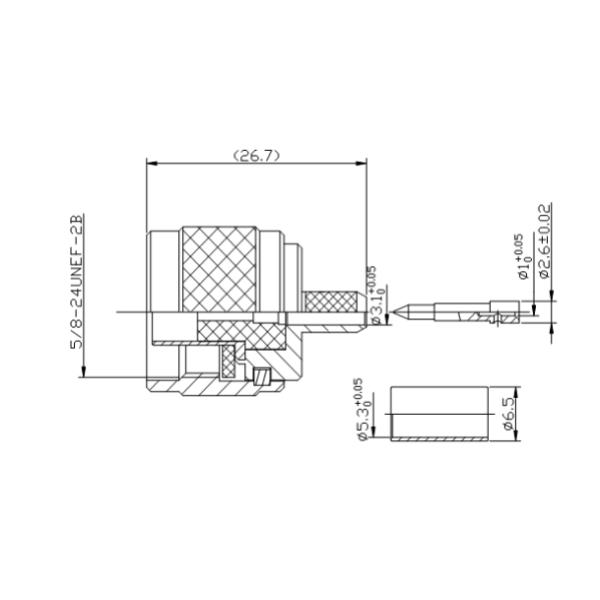

Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug
Specifications
Brand Name :
BOGES
Model Number :
ZL-NFMH-005
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3,000,000 Pcs Per Month
Delivery Time :
15Days After Receive Deposit
Packaging Details :
PE Bag / Carton
Application :
RF
Body Material :
Brass
Plating: :
Nickel , Gold
Gender :
Male
VSWR :
≤1.25@DC-6000MHz
Frequency :
DC - 11 GHz
Description

Straight Crimp Connector N Male Plug , Coaxial RF Connector N Type For RG58 Cable​

Product Description :

RF coaxial N connectors are medium-sized , threaded coupling connectors designed for use from DC to 12.4 GHz . Their consistently low broadband VSWR have made them popular over the years in many applications . The N series connector is impedance matched to 50 ohm cables .

Cable terminations are available in crimp , clamp and solder configurations . The threaded coupling ensures proper mating in applications where shock and extreme vibration are design considerations .

RF coaxial N connectors are used in aerospace , brodcast audio and video applications as well as many microwave components such as filters , couplers , dividers , amplifiers and attenuators to name a few .

Features :

- Accommodates a wide range of popular coaxial cables . Provides threaded coupling mechanisms .
- Available in crimp terminations to provide for low cost installations .

Specifications :

Electrical
Characteristic Impedance 50ohm
Frequency Range DC-11GHz
VSWR ≤1.15@DC-3000MHz
Insertion Losss ≤0.24dB(6GHz)
3rd Order IM (PIM3) —
Working Vlotage 1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage ≥2500V RMS,50Hz,at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center Contact ≤1mΩ Outer Contact ≤0.25 mΩ
Mating —
Mechanical
Durability Mating cycles ≥500
Material and Plating
Parts Name Material Plating
Body Brass Ni
Insulator PTFE —
Inner Conductor Phosphor Bronze Au
Coupling Nut Brass Ni
Gasket Silicone Rubber —
Cable Clamp — —
Ferrule Annealed Copper Ni
Environmental
Operating Temperature -45 ℃-85 ℃
Weatherproof Rate IP67
RoHs (2002/95/EC) Compliant by exemption
Suitable Cable Family RG58 / LMR195/ RG142 / CNT195 cable
Brass RF Coaxial Connectors For RG58 Cable , Straight Crimp Connector N Male Plug

About us :

1. We specialize in RF connectors , RF cable assembly and RF connectors . The main products we manufacture are RF connectors, MCX , MMCX , SMA , SMB , N , RF connector cable Our products are sold to different areas of overseas markets .

2. We have passed ISO9001 quality certification and our products
antenna connector comply with RoHS requirement .

3. We have professional technical development team . we have advanced NC processing equipment and precise test equipment .

4. Our principle is to meet customers’ requirement by good service and high-quality products . The prices of products….. are very competitive and reasonable .

5. We are committed to providing the best products….. to our customers with quickest delivery and best price .


Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
