Specifications
Brand Name :
BOGES
Model Number :
ZL-MMCXFMH-005
Certification :
RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
3,000,000 Pcs Per Month
Delivery Time :
15Days After Receive Deposit
Packaging Details :
PE Bag / Carton
Body material :
Brass
Plating :
Gold plated

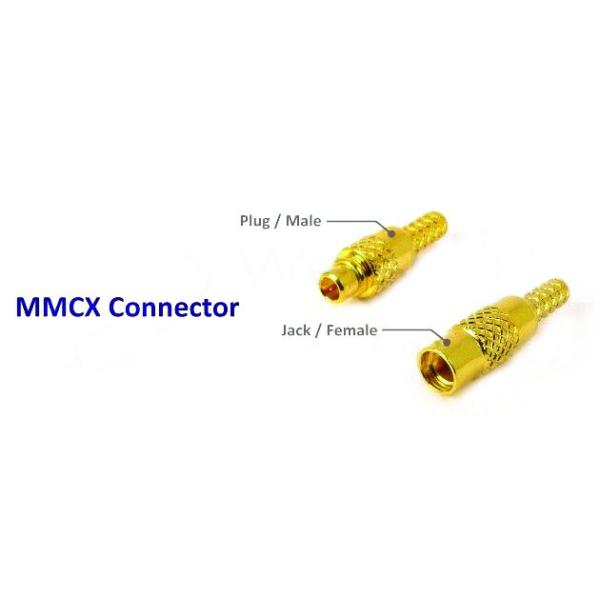

Gender :
Female, plug male
Impedance :
50 ohm
Type :
MMCX
Application :
RF
Description

Micro - Miniature MMCX PCB Connector , Right Angle Aerial Connector RF Coaxial


Product Description :

RF coaxial micro-miniature MMCX PCB connectors are designed with a 50 ohm characteristic impedance. The working frequency is up to 6 GHz. The reliable snap-on mating design offers "low RF-leakage." Also, the small dimensions allow you to use the connectors where space requirements are critical.
The major application for MMCX connectors are PCMCIA cards & other small hand-held communication devices.



Applications:

  • PCMCIA Cards
  • Wireless Application
  • Antennas
  • Wireless LANs
  • Broadband Communications
  • Instrumentation RF Test Ports
  • Cellular Telephones
  • Global Positioning Systems ( GPS )
  • Base Stations
  • Radio Boards
  • Satellite Reception Terminals


Technical Characteristics:

Temperature Range -55~+155℃(PE Cable -40~+85)
Vibration 100m / S2 (10-500Hz), 10g
Impedance 50 Ω
Frequency Range DC -6GHz
Working Voltage 250V r.m.s at sea level
Withstanding Voltage 750V r.m.s at sea level
Contact Resistance Center contact ≤5m Ω
Outer contact ≤2.5m Ω
Contact Pin Brass-Au / Ag plated
Insulation resistance ≥1000M Ω
Center Conductor Retention Force ≥0.28N
Voltage Standing Wave Ratio Straight ≤ 1.20/1GHZ
Right angle ≤ 1.45/GHZ
Durability(mating) ≤500cycles
Body Brass--gold plated
Contact Beryllium copper
Insulator PTFE
