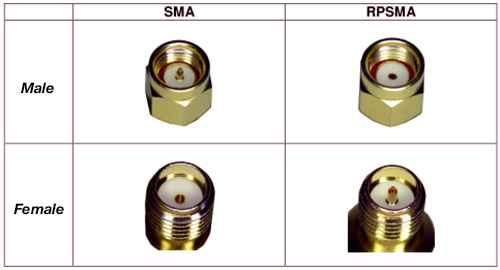

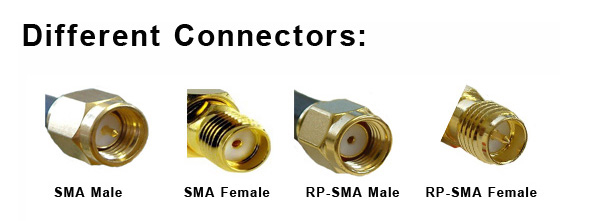

Screw Wire Radio Frequency Connectors SMA Female to RP SMA Male Adapter Wifi Antenna Plug

Product Description :

The SMA series connector for use with semi-rigid and flexible RF cable. are used for microwave applications requiring high performance . They are characterized by their small size and reliability and be inter-changeable with the same type connector of board .

Low cost commercial grade ( brass SMA ) available in nickel or gold plating which provides approximately 30% cost reduction with 250 mating cycle .

Broadband performance DC to 18 Ghz with low reflection stainless steel construction and 1/4-36 threaded coupling offers high performance in a compact design .

Electrical Data:

1) According to IEC 169-15 and Mil-C-39012 specifications

2) Connection dimensions: 1/4"-36UNEF-2A

3) Characteristic impedance: 50Ω

4) Contact resistance (outer conductor): ≤2.5mΩ

5) Contact resistance (inner conductor): ≤3mΩ

6) Insulation resistance: ≥5,000MΩ

7) Withstanding voltage: 1000V

8) VSWR : Straight ≤ 1.10+0.02f

Right angle ≤ 1.20+0.03f

9)Durability(mating) ≥ 500(cycles)

Materials&Plating:

1) Body: Brass, Gold Plating

2) Contact: Beryllium copper, gold plating

3) Insulator: PTFE
