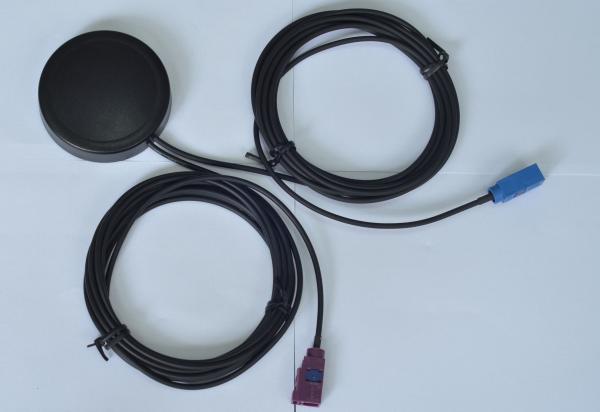

Multi Band GPS GSM Combined Antenna for Car With Fakra Connector
Multi Band GPS GSM Combined Antenna for Car With Fakra Connector
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM15300-8015B-L
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz; 824 960 1800 1900mhz
Impedance :
50 OHM
S.W.R :
2.0 Max.
Peak Gain :
2 dB
Connector :
Fakra Connector Code C
Cable :
RG 174 Cable Black
Price :
Negotiable
Description

Multi Band GPS GSM Combined Antenna for Car With Fakra Connector

Specifications

GPS/GSM Antenna


1. Dual Band GPS: 1575.42 MHz
2. GSM: 824 960 1800 1900 MHz
3. Connector: FAKRA Connector
4. Cable: RG 174 Cable

1) Electrical Characteristics( GPS/GSM combo antenna)

This very low profile antenna is ground plane independent and can be mounted on metal(magnetic). The flat design protects against vandalism.Application examples: On dashboard of trucks or cars,Behind windows of trucks or cars other antenna.

FAKRA Code C and Code D for car

2) Key Specifications/Special Features:

(1) Dielectric Antenna

Center Frequency: 1575.42 MHz±3 MHz

V.S.W.R: 1.5:1

Band Width(MHz ): ±5

Impedance: 50 ohm

Polarization Type: R.H.C.P

(2) LNA/Filter

LNA Gain(w/o cable): 30 dBi Typical

Noise Figure: 1.5 dB

DC Voltage: 2.2~5 V

DC Current: 5~15 mA

(3) GSM Antenna

Frequency Range: 824~894 MHz/1710~1990 MHz

880~960 MHz/1710~1990 MHz

V.S.W.R: 2.0:1

Impedance: 50 ohm

Typical Gain(w/o cable): 2 dBi

Polarization Type: Vertical or Horizontal

(4) Mechanical

Size(mm): D78*15

Mounting: Magnetic/Adhesive/Screw

Housing: Black

Optional Connectors:SMA/MCX/SMB/BNC or others

(v) Environmental

Working Temp.: -40°C~+85°C

Humidity: 55%~75%RH

Waterproof: IP67
