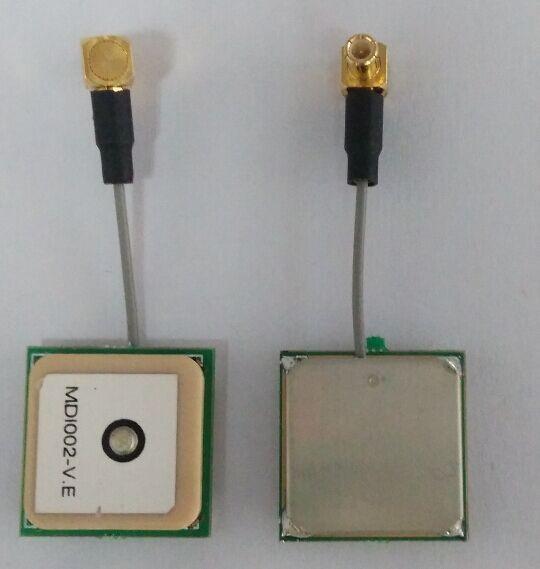

Car GPS Ceramic Patch Antenna 1575 MHz With MCX Connector RF 1.13 Cable Gray
Car GPS Ceramic Patch Antenna 1575 MHz With MCX Connector RF 1.13 Cable Gray
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM1575-1818-L
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz
Impedance :
50 OHM
S.W.R :
1.5 Max.
Return Loss :
>=10 dB
Connector :
MCX Connector Male
Cable :
RF 1.13 Cable
Price :
Negotiable
Description

Car GPS Ceramic Patch Antenna 1575 MHz With MCX Connector RF 1.13 Cable Gray

1. Object

OBD V2 GPS antenna.

2. Electrical Characteristics

No.

Item

Specifications

Post Environmental Tolerance

2.1

Range of Receiving Frequency (Mhz)

1575

±2.5

2.2

Center Frequency (Mhz)

(with D01 GND Plane)

1590

±3.0

2.3

Band With (Mhz)

(Return loss ≤-10dB)

≥5

±0.5

2.4

V.S.W.R(in Center Frequency)

≤1.5

±0.5

2.5

Gain(Zenith) (dBi typ)

――

――

2.6

Axial Ratio

――

——

2.7

Polarization

Right-Handed Circular

——

2.8

Impedance(Ω)

50

——

2.9

Frequency Temperature Coefficient

(ppm/℃)

0±10

——

3. Characteristic curve

Car GPS Ceramic Patch Antenna 1575 MHz With MCX Connector RF 1.13 Cable Gray
