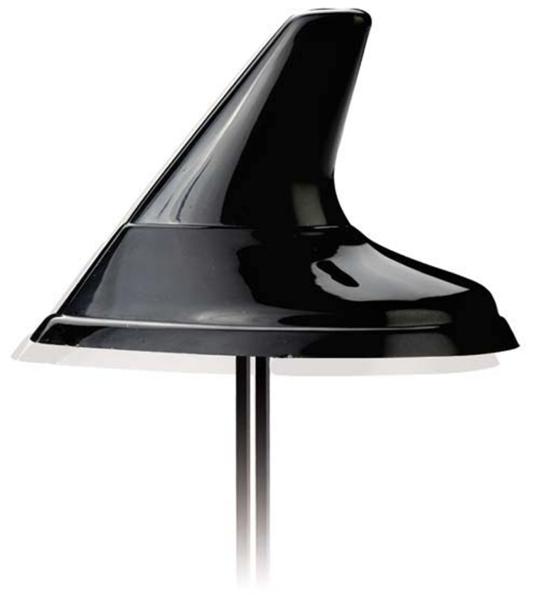

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity
Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM1575-4350SM
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz
Impedance :
50 OHM
S.W.R :
1.5 Max.
Peak Gain :
4 dB
Connector :
SMA Male; RP-SMA Male
Cable :
RG 174 Cable Black
Price :
Negotiable
Description

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity

Feature

▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design

Application

▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System

Detail Product Description

Type 25x25 Ceramic Antenna

▪ Frequency : 1575.42 ±5 MHz

▪ Polarization : Right Hand Circular Polarization

▪ S.W.R. : <= 1.5 ▪ Gain : 4dBic @ 0 deg.

Amplifier / Filter

▪ Gain : 18 dB (typical) ▪ Noise Figure : 1.5 dB

▪ DC Voltage : 3 ~ 5 V ▪ DC Current : 5 ~ 10m A

GSM Quad-Band Antenna

▪ SWR : <=2.0 @ 824-960 &1710-1990 MHz

▪ Gain : 2 & 2 dBi

Mechanical / Environment

▪ Connector : SMA/FME/MMCX/BNC/FAKRA

TNC/MCX/SSMB/SMB/SMC

▪ Cable : RG-174 // 5000 mm

S.W.R

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity

Radiation Pattern

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity

Drawing

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity
