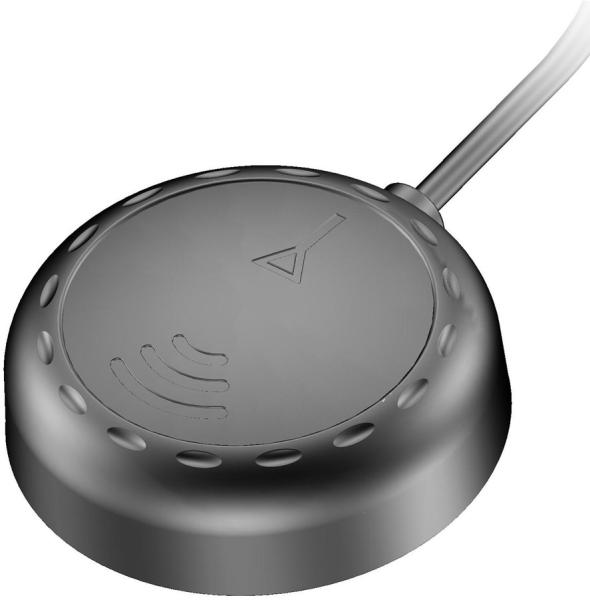

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable
Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM1575-3650SM
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz
Impedance :
50 OHM
S.W.R :
1.5 Max.
Peak Gain :
4 dB
Connector :
SMA Male; RP-SMA Male
Cable :
RG 174 Cable Black
Price :
Negotiable
Description

Passive Car Navigation Roof Mount Gps Antenna With Rf Coaxial Connector Cable

Feature

▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design

Application

▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System

Detail Product Description

Type 25x25 Ceramic Antenna

▪ Frequency : 1575.42 ±5 MHz

▪ Polarization : Right Hand Circular Polarization

▪ S.W.R. : <= 1.5 ▪ Gain : 4dBic @ 0 deg.

Amplifier / Filter

▪ Gain : 18 dB (typical) ▪ Noise Figure : 1.5 dB

▪ Out Band Rejection : 7dB @ ± 20MHz;

20dB @ ± 50MHz;

30dB @ ±100MHz;

▪ DC Voltage : 3 ~ 5 V ▪ DC Current : 5 ~ 10m A

Mechanical / Environment

▪ Weight : < 110 g ▪ Color : Black

▪ Connector : SMA/FME/MMCX/BNC/FAKRA

TNC/MCX/SSMB/SMB/SMC

▪ Cable : RG-174 // 5000 mm

S.W.R

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable

Radiation Pattern

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable

Drawing

Passive Car Navigation Roof Mount Car GPS Antenna With Rf Coaxial Connector Cable
