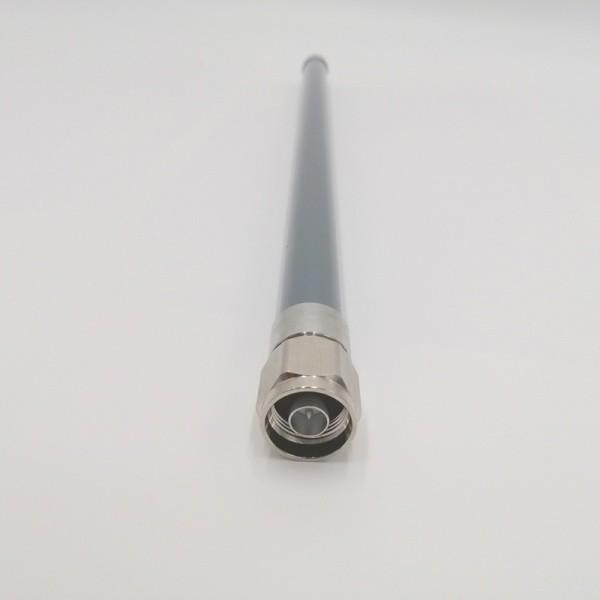

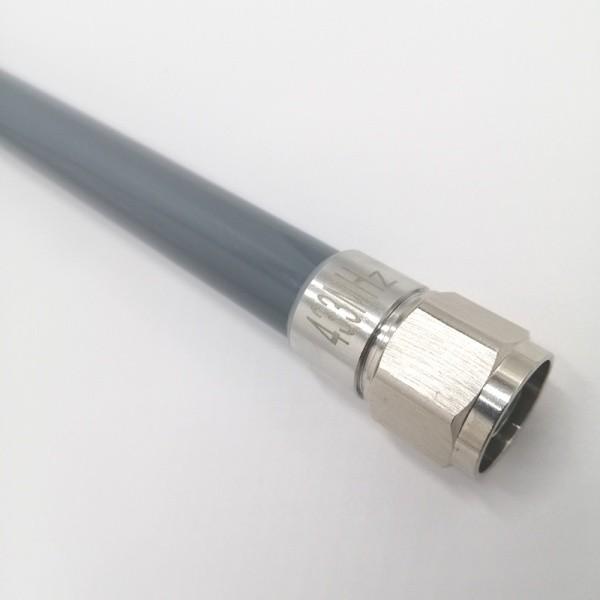

Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Outdoor IP67 FRP Antenna Fiber Glass 433 MHz 3dB Length 350mm
Specifications
Brand Name :
BOGES
Model Number :
BGS-AN433-16350G
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
5K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Price :
Negotiable
Frequency :
433 MHz
Impedance :
50 OHM
S.W.R :
2.0 Max.
Gain :
3 dBi
Description

Electrical Characteristics

Frequency: 433 MHz

Gain: 3 +/- 1 dBi

Horizontal Beamwidth: 360 ˚

Vertical Beamwidth: 80-90 ˚

V.S.W.R: 2.0:1 Max.

Polarization: Vertical

Impedance: 50 OHM

Max. Power: 50W

Lightning protection: DC Groud

Material & Mechanical Characteristics

Dimension: Φ16*350mm

Connector: N Connector

Weight: 0.15Kg

Rated Wind Velocity: 36.9m/s

Environmental

Operation Humidity: <95%

Operation Temperature: - 40 ˚C ~ + 65 ˚C

Storage Temperature: - 40 ˚C ~ + 80 ˚C
