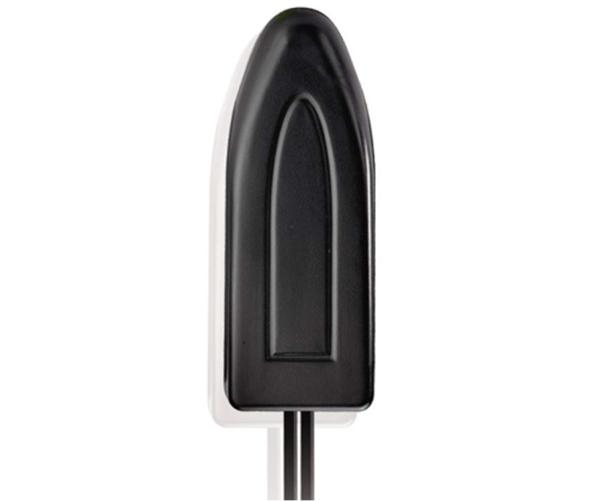

Low Loss GPS Active Quad Band Gsm Antenna RF Coaxial Connector Cable Feed
Low Loss GPS Active Quad Band Gsm Antenna RF Coaxial Connector Cable Feed
Specifications
Brand Name :
BOGES
Model Number :
BGS-MM1575-4150SM
Certification :
ISO9001,RoHs
Place of Origin :
Dongguan, Guangdong, China
MOQ :
Negotiable
Payment Terms :
T/T
Supply Ability :
20K per day
Delivery Time :
10 days
Packaging Details :
PE Bag/Carton
Frequency :
1575.42 MHz; 824-960 &1710-1990 MHz
Impedance :
50 OHM
S.W.R :
2.0 Max.
Peak Gain :
4 dB
Connector :
SMA Male; RP-SMA Male
Cable :
RG 174 Cable Black
Price :
Negotiable
Description

High Efficiency And Sensitivity GPS Active and GSM Quad Band Dual Mode Antenna

Feature

▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design

Application

▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System

Detail Product Description

Type 25x25 Ceramic Antenna

▪ Frequency : 1575.42 ±5 MHz

▪ Polarization : Right Hand Circular Polarization

▪ S.W.R. : <= 1.5 ▪ Gain : 4dBic @ 0 deg.

Amplifier / Filter

▪ Gain : 18 dB (typical) ▪ Noise Figure : 1.5 dB

▪ DC Voltage : 3 ~ 5 V ▪ DC Current : 5 ~ 10m A

GSM Quad-Band Antenna

▪ SWR : <=2.0 @ 824-960 &1710-1990 MHz

▪ Gain : 2 & 2 dBi

Mechanical / Environment

▪ Connector : SMA/FME/MMCX/BNC/FAKRA

TNC/MCX/SSMB/SMB/SMC

▪ Cable : RG-174 // 5000 mm

S.W.R

Low Loss GPS Active Quad Band Gsm Antenna RF Coaxial Connector Cable Feed

Radiation Pattern

Low Loss GPS Active Quad Band Gsm Antenna RF Coaxial Connector Cable Feed

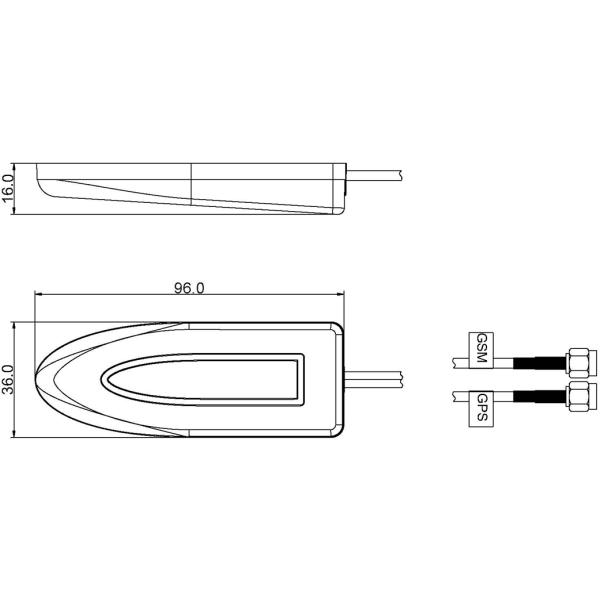

Drawing

Low Loss GPS Active Quad Band Gsm Antenna RF Coaxial Connector Cable Feed
