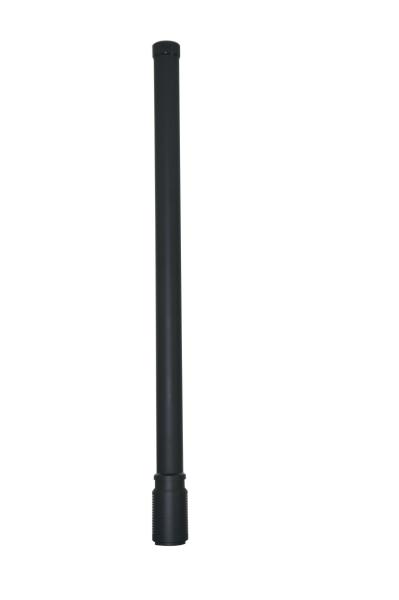

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
Specifications
Angle :
Full 360° (All- Airspace)
Input Connector Type :
N-J (Embedded)
Transport Package :
Carton
Specification :
660x360x340mm
Origin :
China
Package Gross Weight :
0.550kg
Weight :
500g
Frequency :
5.2g 5.8g
Function :
Amplify The Distance of The Anti-Drone Module
Samples :
US$ 15/Piece
Customization :
Available | Customized Request
Place of Origin :
Guangdong, China
Brand Name :
LDSK
MOQ :
2 piece
Delivery Time :
5-8 workdays
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability :
5000pcs per month
Description

High Gain 50W 20*600mm 5.2g 5.8g Omni Directional Fiberglass Antenna with 10dBi Gain

Parameters
Frequency Range 5.2G 5.8G
Gain(dBi) 10±1dBi
VSWR ≤2.0
Polarization Vertical
Horizontal Beam width(0º) 360º
Vertical Beam width(0º) 9±3º
Ovality(dB) ±2dB
Input Impedance(Ω) 50Ω
Maximum input power(W) 100W
Input connector type N-J (embedded)
Lightning Protection DC Grounding
Dimensions­mm(Diameter * Length) 20*600mm
Packing size(mm) 660*360*340mm
Antenna weight(kg) 0.5±0.1KG
Rated Wind Velocity(m/s) 36.9m/s
Operational Humidity(%) 10º-95º
Radome Color Black
Radome material Fiberglass
Operating temperature(ºC) -30~65º
Installation Method Machine mounting
600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
Product Description

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain 600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain

Packing & Delivery
Quantity (sets)
> 500
> 1000
Others
Lead time (days)
7 days
about 7-14 days
Negociation

600mm 5.2g 5.8g Omni Directional Fiberglass Antenna High Gain 50W with 10dBi Gain
FAQ

1. Why choose us?
We have professional knowledge, sincere service, patient reply, and excellent team. Can give you a comfortable buying experience.

2. How to contact us?
Pls contact me in made-in-china directly.
Also, you can contact me in other way
