Specifications
Place of Origin :
Guangdong, China
Brand Name :
LDSK
MOQ :
1 piece
Delivery Time :
1-3 workdays
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram， Paypal
Supply Ability :
50000 PCS/Month
Model NO. :
LDSK
Power :
100W
Frequency :
2400-2500MHz
Working Power :
30V
Function :
Amplify
Transport Package :
Carton Box
Specification :
170*94*26.5mm(excluding SMA)
Trademark :
LDSK
Origin :
China
Package Size :
10.00cm * 10.00cm * 5.00cm
Package Gross Weight :
1.000kg
Weight :
627g
Interface :
SMA
Samples :
US$ 265/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Description

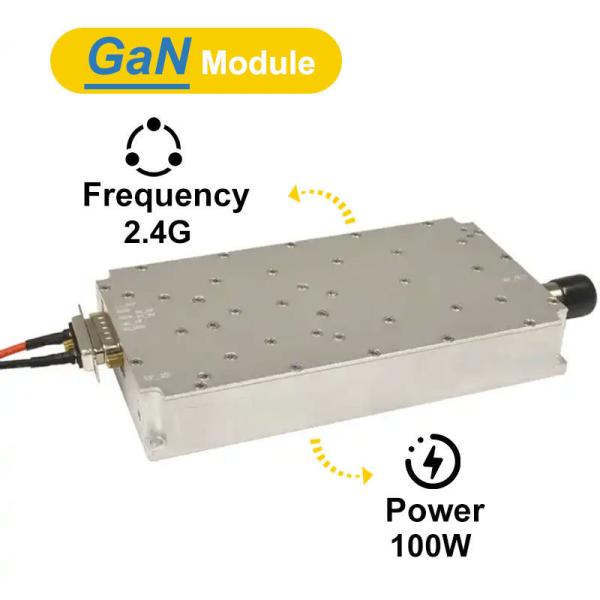

2400-2500MHz 100W anti-drone gan module

Power and Frequnecy support Customzation form 380MHZ- 5.8G, 10W,20W,30W, 40W, 50W,100W

--The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module

2400-2500Mhz 100W GaN Amplifier Module

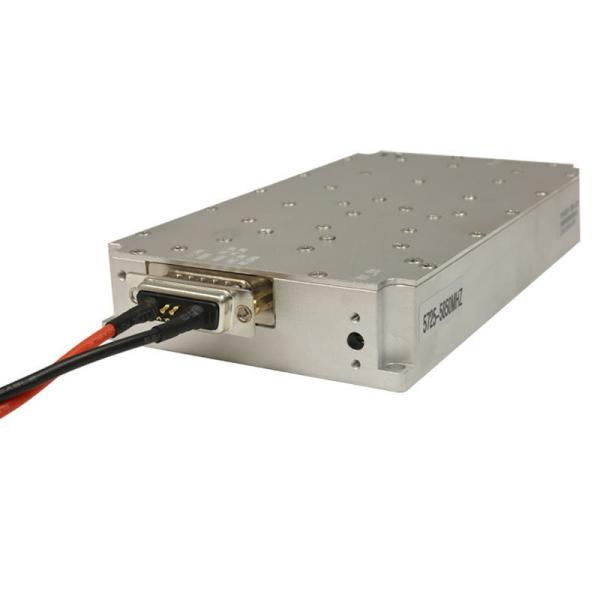

Appearance and installation instructions:
1. Overall dimensions: 170*94*26.5mm
2. Interface form:
① Power supply conditions: +30V power supply: 7W2 (male)
②RF input interface: SMA-KFD (optional)
③RF output interface: N-KFD
④Control interface:
a.7W2 (male) socket: The first pin is connected to the power amplifier enable PA_SW (high level 5V/3.3V power amplifier turns on,low level or floating, the power amplifier turns off)
b.Feedthrough capacitor: From top to bottom, they are SRC_SW (internal signal source switch 5V/3.3V on, floating or grounded signal source off), PS_SW (internal and external signal source switch, low level is the built-in source, high level Level 5V/3.3V switch to external source)
3.Mounting hole diameter: Leave 4 Φ4.5mm through holes at the mounting holes for mounting M3 screws.
Frequency
2400-2500Mhz
Output Power(dBm)
100W(50dBm)
In-band group delay
≤1us
Gain
45±1.0,45±1.0 (external input 6dbm, power amplifier output 50dbm)
In-band fluctuation (dB)
≤2.5 (peak-to-peak value)
Input voltage standing wave ratio
≤1.35
Output voltage standing wave ratio
≤1.3
Supply voltage Typical
+30Vdc Range: 24-36V
Supply current
+30Vdc@100W≤5.5A
Output RF connector
N-50KFD
Size
170×94×26.5mm (excluding connectors)
Input signal source
Built-in high-efficiency modulation sweep signal source, which can also be connected to external sources
1 7W2 male socket
2 Feedthrough capacitors (from top to bottom)
1: A1 is the 30V power input, and A2 is GND;
2: The first pin of 7W2 is the PA_SW power amplifier enable;
3: The upper through-core capacitor is SRC_SW (internal signal source switch), high-on, low-off;
4: The feedthrough capacitor below is PS_SW (internal and external source switch), high: external source; low: built-in source;
Autel Anti Drone System C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module 2.4G 100W GaN Anti-Module
Lead time
Quantity(PCS) <100pcs <500 500-1000 >1000
Lead time(Days) 3 3-5 7-12 To be negotiated


Customization

Item Logo Frequency Power Packing
MOQ(PCS) 1 1 1 1
