DIN766 American Standard Chain , Stainless Steel Chain From 2mm To 32mm
DIN766 American Standard Chain , Stainless Steel Chain From 2mm To 32mm
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
1TONS
Description

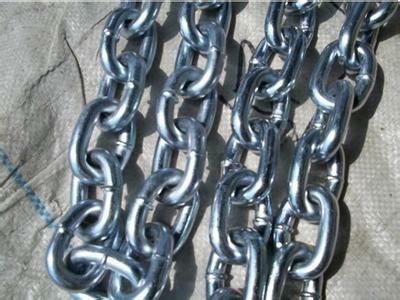

DIN766 American Standard Chain , Stainless Steel Chain From 2mm To 32mm

IN766 link chain,also named DIN766 round link chain, is manufactured as per Germany standard.We supply DIN766 link chain from 2mm to 32mm.

DIN766 American Standard Chain , Stainless Steel Chain From 2mm To 32mm

Size(d) Inside Length(t) Inside Width(b1) Outside Width(b2) Length Per 11 Links Weight Per 100M
mm ±mm mm ＋mm －mm mm mm mm ＋mm －mm kg
2 0.2 12 0.2 0.2 3.5 7.5 132 1.0 0.5 0.07
3 0.2 16 0.2 0.2 4.2 11.0 176 1.4 0.7 0.16
4 0.2 16 0.3 0.2 5 13.7 176 2.1 1.1 0.32
5 0.20 18.5 0.4 0.2 6 17.0 203.5 2.4 1.2 0.5
6 0.2 18.5 0.4 0.2 7.2 20.2 203.5 2.4 1.2 0.8
7 0.30 22 0.4 0.2 8.4 23.8 242 3 1.4 1.1
8 0.3 24 0.4 0.2 9.6 27.2 264 3.2 1.5 1.4
9 0.4 27 0.5 0.3 10.8 30.6 297 3.6 1.8 1.8
10 0.4 28 0.5 0.3 12 34.0 308 3.7 1.9 2.2
11 0.4 31 0.5 0.3 13.2 37.4 341 4 2 2.7
12 0.3 36 0.6 0.3 14.4 40.8 396 4.4 2.2 3.10
13 0.5 36 0.6 0.3 15.6 44.2 396 4.6 2.4 3.8
14 0.6 41 0.7 0.4 16.8 47.6 451 5.4 2.7 4.4
16 0.6 45 0.8 0.4 19.2 54.4 495 6 3 5.7
18 0.9 50 0.8 0.4 21.6 61.2 550 6.6 3.3 7.3
19 0.4 53 0.9 0.4 22.8 64.6 583 7.0 3.7 7.97
20 1 56 1 0.5 24 68.0 616 7.4 307 9
22 1.2 62 1.1 0.5 26.4 75.0 682 8.0 4.0 11.0
23 1.2 64 1.1 0.5 27.6 78.2 704 8.4 4.2 12
26 1.3 73 1.2 0.6 31.2 88.4 803 9.6 4.8 15
28 1.4 78 1.3 0.65 33.8 95.2 858 10.2 5.1 18
30 1.5 84 1.4 0.7 41.0 102 924 11.0 5.5 19.5
32 1.6 90 1.5 0.75 43.0 108.8 990 11.8 5.9 23.0
