MT Series Standard Roller Chain , Stainless Steel Double Strand Roller Chain
MT Series Standard Roller Chain , Stainless Steel Double Strand Roller Chain
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

MT Series Standard Roller Chain , Stainless Steel Double Strand Roller Chain

MT series conveyor chain is kind of conveyor chains. The main specification is MT28,MT40,MT56,MT80,MT112,MT160 etc.

MT Series Standard Roller Chain , Stainless Steel Double Strand Roller Chain

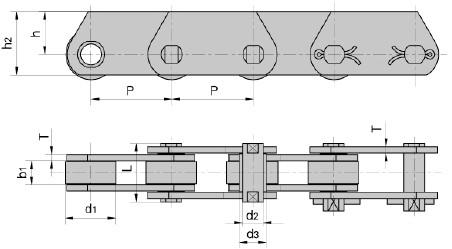

Chain No. Ultimate Tensile Strength (Kn) Pitch P mm Width Between Inner Plate B1 min mm Pin Dimension d2 max mm Pin Length L Max mm Plate Thickness T Max mm Roller Diameter D1 Max mm Bush Diameter D3 max mm Plate depth
H2 Max mm h Max mm
MT20 20 40 16.0 6.0 35.0 2.5 25.0 9.0 25.0 16.0
50
63
80
100
125
160
MT28 28 50 18.0 7.0 40.0 3.0 30.0 10.0 30.0 20.0
63
80
100
125
160
200
MT40 40 63 20.0 8.5 45.0 3.5 36.0 12.5 35.0 22.5
80
100
125
160
200
250
MT56 56 63 24.0 10.0 52.0 4.0 42.0 15.0 45.0 30.0
80
100
125
160
200
250
MT80 80 80 28.0 12.0 62.0 5.0 50.0 18.0 50.0 32.5
100
125
160
200
250
315
MT112 112 80 32.0 15.0 73.0 6.0 60.0 21.0 60.0 40.0
100
125
160
200
250
315
400
MT160 160 100 37.0 18.0 85.0 7.0 70.0 25.0 70.0 45.0
125
160
200
250
315
400
500
MT224 224 125 43.0 21.0 98.0 8.0 85.0 30.0 90.0 60.0
160
200
250
315
400
500
630
MT315 315 160 48.0 25.0 112.0 10.0 50.0 36.0 100.0 65.0
200
250
315
400
500
630
MT450 450 200 56.0 30.0 135.0 12.0 60.0 42.0 120.0 80.0
250
315
400
500
630
800
