Advanced Standard Roller Chain Steel Alloy Agricultural Roller Chain
Advanced Standard Roller Chain Steel Alloy Agricultural Roller Chain
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
1000METERS
Packaging Details :
WOODEN PACKAGE
Description

Advanced Standard Roller Chain Steel Alloy Agricultural Roller Chain

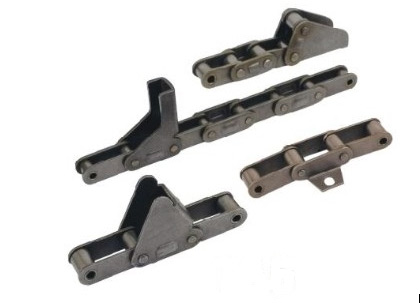

Agricultural chain is also referred as agricultural roller chain. It is one of the roller chains used for agricultural machine. It includes several types. Like CA type steel agricultural chains and S type steel agricultural chains. Our agricultural chains are strictly built in accordance with ISO487. The chains are made of premium steel alloy, manufactured and assembled by automatic machines, advanced heat-treatment and surface consolidating techniques. And they are typically applied in combine harvesters, round balers, feed wagon lifts, etc. The main specification includes:S32,S42,S45,S52,S55,S55R,S62,S77,S88 etc.

Advanced Standard Roller Chain Steel Alloy Agricultural Roller Chain

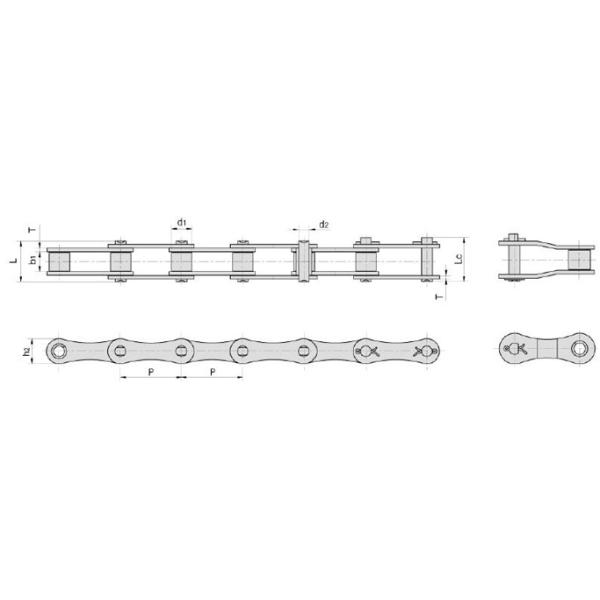

Pitch Roller
Diameter		 Width
Between
Inner plate		 Pin
Diameter		 Pin
Length		 Plate
Diamension		 Ultimate
Tensile
Strength		 Average
Tensile
Strength		 Weight
Per
Meter
Chain no. <div align= p D1Max B1min D2Max LMax LcMax H2Max TMax QMin q
mm mm Mm Mm mm mm Mm mm KN/LB KN Km/m
S32 29.21 11.43 15.83 4.45 26.70 28.80 13.20 1.80 8.00/1818 21.60 0.86
S42 34.93 14.27 19.05 7.01 34.30 37.00 19.80 2.80 26.70/6136 50.80 1.60
S45 41.40 15.24 22.23 5.72 37.70 40.40 17.30 2.80 18.00/4091 36.10 1.66
S52 38.10 15.24 22.23 5.72 37.70 40.40 17.30 2.80 18.00/4091 36.10 1.68
S55 41.40 17.78 22.23 5.72 37.70 40.40 17.30 2.80 18.00/4091 36.10 1.80
S55R 41.40 17.78 22.23 8.90 41.00 44.00 22.40 3.50 45.00/10227 73.10 2.49
S62 41.91 19.05 26.20 5.72 40.30 43.00 17.30 2.50 26.70/6067 36.10 1.87
S77 58.34 18.26 22.23 8.92 43.20 46.40 26.20 4.00 45.00/10227 73.10 2.65
S88 66.27 22.86 28.58 8.90 49.80 53.00 26.20 4.00 45.00/10227 73.10 3.25
