Description

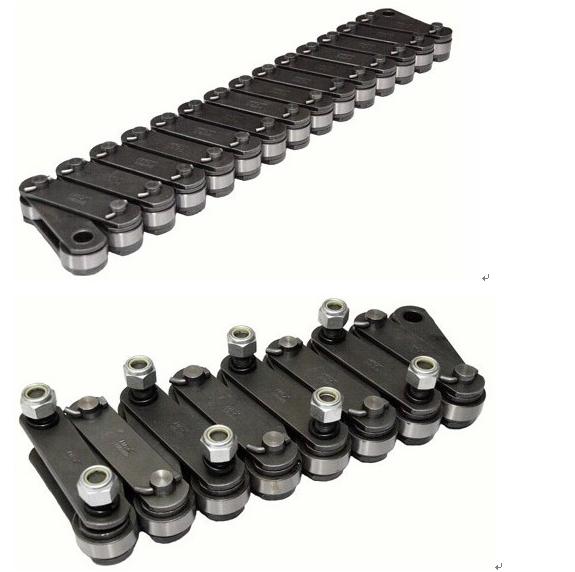

Abrasion Resistance Industrial Roller Chain High Tensile Strength Palm Oil Chain

Palm oil mill chain is also reffered as palm oil mill chain. It is widely used for palm oil industry.
Palm oil chain is a kind of conveyor chain applied to conveying materials in the production of palm oil. In palm oil process line,a chain needs to have good tensile strength and abrasion resistance for sale and efficient production. The most common chains for palm oil process line are palm oil conveyor chain,and palm oil hollow pin conveyor chain.

As a professional palm oil chain manufacturer,we carries out detailed material selecting,precision machining,special heat treatment,precision assembling and pre-lubricating for the production of our palm oil chain.As a result,our palm oil chain has good precision,durability,abrasion resistance,and can fulfill high-efficiency conveyance of materials.

Abrasion Resistance Industrial Roller Chain High Tensile Strength Palm Oil Chain

Abrasion Resistance Industrial Roller Chain High Tensile Strength Palm Oil Chain

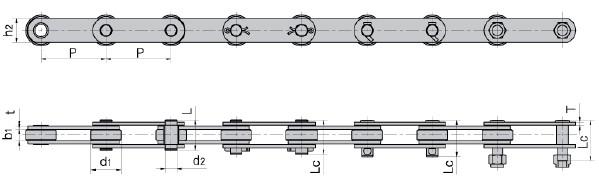

Chain no. Pitch Roller Diameter Width Between Inner plate Pin Diameter Pin Length Plate depth Plate thickness Ultimate Tensile Strength Average Tensile Strength Weight Per Meter
p D1 Max B1 min D2 Max L Max Lc max H2 T Q Min Q0 q
mm mm mm mm mm mm mm mm KN/LB KN Km/m
P101.6F2 101.6 47.6 18.2 19.1 48.0 65.0 38.1 5.0 97.8/22000 107.58 6.75
F152F14 152.4 47.6 18.2 19.1 48.0 52.5/50.5 38.1 5.0 89/20000 97.90 5.66
F152F17 152.4 66.7 25.4 27.0 67.5 88.5 50.8 8.0 163.3/36000 179.60 12.83
P152F29 152.4 66.7 25.4 27.0 69.5 111.5 50.8 9.0/8.0 200/45000 220.00 13.54
90R-S 101.6 47.6 21.4 11.32 ----- 55.7 31.8 4.8 80.36/18070 88.40 5.90
P101.6F64 101.6 50.8 30.0 14.50 ----- 69.0 38.1 6.3 132.7/29800 146.00 7.30
P76.7 76.7 29.0 30.0 14.50 ----- 73.0 38.1 6.3 100/25000 110.00 8.25
P152F31 152.4 88.9 38.1 31.80 ----- 98.5 61.0 10.0 266.72/60000 293.00 26.60
