Three Types Standard Roller Chain FV Series Stainless Roller Chain
Three Types Standard Roller Chain FV Series Stainless Roller Chain
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

Three Types Standard Roller Chain FV Series Stainless Roller Chain

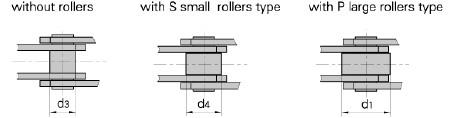

FV series conveyor chain includes three types and the main specification is FV40,FV63,FV90,FV112 etc.

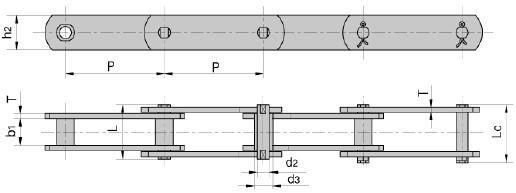

Three Types Standard Roller Chain FV Series Stainless Roller Chain



Three Types Standard Roller Chain FV Series Stainless Roller Chain

Chain

No.

Ultimate

Tensile

Strength

(Kn)

Pitch

P

mm

Width

Between

Inner

Plate

B1

min

mm

Pin

Dimension

d2

max

mm

Pin

Length

Plate

Thickness

T

Max

mm

Plate

Depth

h2

max

mm

Bush

Diameter

D3

max

mm

Roller

Diameter

D1

Max

mm

D4

Max

mm

L

Min

mm

Lc

Max

mm
FV40 40 50.0 18.0 10.0 36.0 39.0 3.0 25.0 15.0 32.0 20.0
63.0
80.0
100.0
125.0
FV63 63 63.0 22.0 12.0 45.0 48.5 4.0 30.0 18.0 40.0 26.0
80.0
100.0
125.0
160.0
FV90 90 63.0 25.0 14.0 53.0 56.5 5.0 35.0 20.0 48.0 30.0
80.0
100.0
125.0
160.0
200.0
250.
FV112 112 100.0 30.0 16.0 62.0 66.0 6.0 40.0 22.0 55.0 32.0
125.0
160.0
200.0
250.0
FV140 140 100.0 35.0 18.0 67.0 71.5 6.0 45.0 26.0 60.0 36.0
125.0
160.0
200.0
250.0
FV180 180 125.0 45.0 20.0 86.0 92.0 8.0 50.0 30.0 70.0 42.0
160.0
200.0
250.0
315.0
FV250 250 160.0 55.0 26.0 97.0 103.5 8.0 60.0 36.0 80.0 50.0
200.0
250.0
315.0
400.0
FV315 315 160 65.0 30.0 113.0 126.5 10.0 70.0 42.0 90.0 60.0
200
250
315
400
