Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard
Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

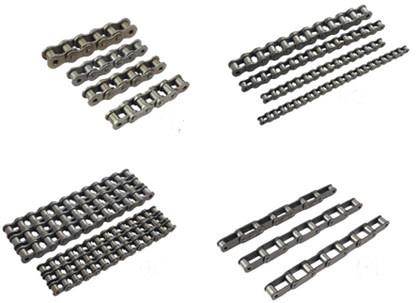

Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard

Double pitch roller chain, also referred as double pitch conveyor chains, are built according ISO and DIN stsndard. Products with attachments are widely used in conveyor applications when loads are low and speeds are moderate. Available variations include larger diameter rollers and hollow pin design. These chains can also be supplied in stainless steel, nickel-plated or zinc-plated versions (oversized roller chains can be steel or engineering plastics).The main specification includes

C2040,C2042,C2050,C2052,C2060H,C2062H,C2080,C2082,C2080H,C2082H, A2040. 208B, A2050, 210B, A2060, 212B, A2080, 216B, A2100, 220B, A2120, 224B and so on.

Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D F G G1
A2040 1" 25.40 7.94 7.92 10.10 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.40
A2050 1-1/4" 31.75 9.53 10.16 12.60 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 0.66
A2060 1-1/2" 38.10 12.70 11.91 15.00 17.10 2.40 2.40 5.95 12.50 14.15 15.40 4400 0.93


Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C2040 1" 25.40 7.94 7.92 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.49
C2050 1-1/4" 31.75 9.53 10.16 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 0.84
C2060H 1-1/2" 38.10 12.70 11.91 17.10 3.10 3.10 5.95 14.10 15.70 16.60 4400 1.45
C2080H 2" 50.80 15.88 15.88 23.00 3.90 3.90 7.94 17.90 --- 20.80 8000 2.41
C2100H 2-1/2" 63.50 19.05 19.05 28.90 4.70 4.70 9.52 21.70 --- 24.90 12000 3.50
C2120H 3" 76.20 25.40 22.20 35.00 5.60 5.60 11.10 26.98 --- 30.57 16000 6.00
C2160H 4" 101.60 31.75 28.58 48.00 7.20 7.20 14.28 34.15 --- 38.85 27500 8.90

DOUBLE PITCH ROLLER CHAIN (OVERSIZED ROLLER)

Nickel Plated Double Pitch Roller Chain With ISO / DIN Standard

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C2042 1" 25.40 7.94 15.88 11.70 1.50 1.50 3.96 8.20 9.35 10.10 1850 0.86
C2052 1-1/4" 31.75 9.53 19.05 14.60 2.00 2.00 5.06 10.10 11.65 12.60 3100 1.32
C2062H 1-1/2" 38.10 12.70 22.23 17.10 3.10 3.10 5.95 14.10 15.70 16.60 4400 2.17
C2082H 2" 50.80 15.88 28.58 23.00 3.90 3.90 7.94 17.90 --- 20.80 8000 2.87
C2102H 2-1/2" 63.50 19.05 39.67 28.90 4.70 4.70 9.52 21.70 --- 24.90 12000 4.68
C2122H 3" 76.20 25.40 44.45 35.00 5.60 5.60 11.10 26.98 --- 30.57 16000 8.00
C2162H 4" 101.60 31.75 57.15 48.00 7.20 7.20 14.28 34.15 --- 38.85 27500 13.6
