High Strength Standard Roller Chain Stainless Steel Straight Plate Chain
High Strength Standard Roller Chain Stainless Steel Straight Plate Chain
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

High Strength Standard Roller Chain Stainless Steel Straight Plate Chain

Straight plate chain is also reffered as straight link plate chain. Its only different from the common roller chain is on the plate. Straight plate chain's plate is straight. In the follow form, we have listed the main specification: C40-C100,C06B-C24B. And we also can produce the straight plate chain according to the customers'request.

High Strength Standard Roller Chain Stainless Steel Straight Plate Chain

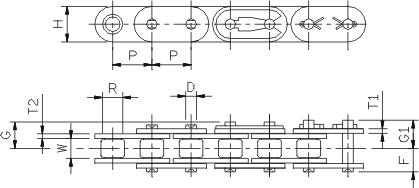

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average Ultimate Strength kgf Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C40 1/2" 12.70 7.94 7.92 12.00 1.50 1.50 3.96 8.20 9.35 10.1 1850 0.65
C50 5/8" 15.875 9.53 10.16 15.00 2.00 2.00 5.06 10.10 11.65 12.6 3100 1.03
C60 3/4" 19.05 12.70 11.91 18.10 2.40 2.40 5.95 12.50 14.15 15.4 4400 1.46
C80 1" 25.40 15.88 15.88 24.00 3.10 3.10 7.94 16.10 --- 18.80 7800 2.44
C100 1-1/4" 31.75 19.05 19.05 28.90 3.90 3.90 9.52 20.10 --- 23.10 11800 4.31

High Strength Standard Roller Chain Stainless Steel Straight Plate Chain

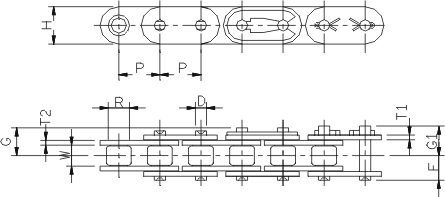

CHAIN NO. Pitch x Width Width Roller Plate Pin Average Ultimate Strength kgf Approx Weight
kg/m
P x W W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D F G G1
C06B 0.375" 9.525 5.72 6.35 8.10 1.00 1.25 3.28 6.10 7.40 --- 1050 0.39
C08B 0.5" 12.70 7.75 8.51 11.80 1.50 1.50 4.44 8.20 9.50 --- 1930 0.75
C10B 0.625" 15.875 9.65 10.16 14.60 1.65 1.65 5.06 9.60 11.10 --- 2700 1.00
C12B 0.75" 19.05 11.68 12.07 16.00 1.80 1.80 5.72 11.10 12.60 --- 3400 1.29
C16B 1" 25.40 17.02 15.88 21.00 3.20 4.00 8.27 17.70 19.25 20.20 8000 2.70
C20B 1.25" 31.75 19.56 19.05 26.00 3.50 4.40 10.18 20.50 --- 23.50 12000 4.25
C24B 1.5" 38.10 25.40 25.40 33.00 5.20 6.00 14.62 26.65 --- 32.35 18000 8.20
