MC Series Steel Roller Chain Four Types Stainless Steel Roller Chain
MC Series Steel Roller Chain Four Types Stainless Steel Roller Chain
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

MC Series Steel Roller Chain Four Types Stainless Steel Roller Chain

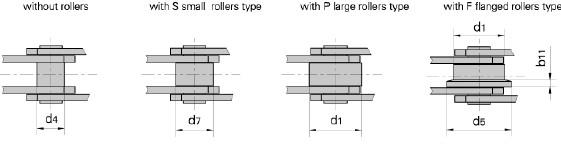

MC series conveyor chain includes four types and the main specification is MC28, MC56, MC112,MC224 etc.

MC Series Steel Roller Chain Four Types Stainless Steel Roller Chain MC Series Steel Roller Chain Four Types Stainless Steel Roller Chain

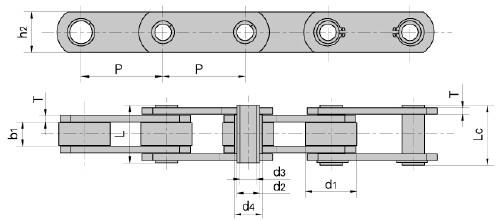

Chain No. Breaking Loading Q (kN) Pitch P mm Width Between Inner Plate B1 Min mm Pin Diameter Pin length Plate Thickness T Max mm Plate Depth H2 Max mm Bush Diameter D4 Max mm Roller dimension
D2 Max mm D3 Min mm L Max mm Lc Max mm D1 Max mm D7 Max mm D5 Max mm B11 Max mm
MC28 28 63 20.0 13.0 8.2 36.0 38.5 3.5 25.0 17.5 36.0 25.0 45.0 4.5
80
100
125
160
MC56 56 80 24.0 15.5 10.2 45.0 47.5 4.0 35.0 21.0 50.0 30.0 60.0 5.0
100
125
160
200
250
MC112 112 100 32.0 22.0 14.3 62.5 64.3 6.0 50.0 29.0 70.0 42.0 85.0 7.0
125
160
200
250
315
MC224 224 160 43.0 31.0 20.3 83.0 85.5 8.0 70.0 41.0 100.0 60.0 120.0 10.0
200
250
315
400
500
