ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors
ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors
Specifications
Brand Name :
FRESH CHAIN
Place of Origin :
ZHENJIANG
MOQ :
100METERS
Packaging Details :
WOODEN PACKAGE
Description

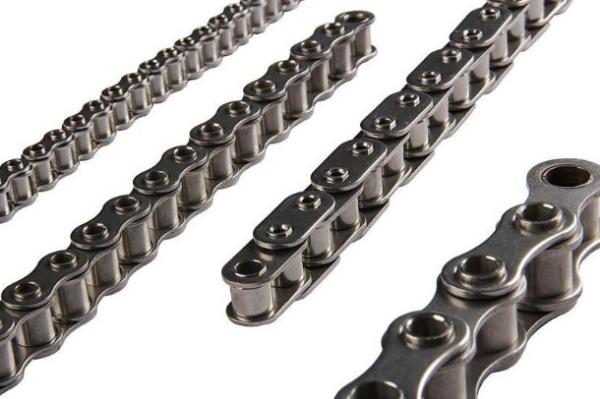

ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors

For food handling conveyors, Hollow Pin Chains are available in ANSI standard short pitch series (40HP - 80HP), double pitch series with standard rollers (C2040HP - C2080HP), and large rollers (C2042HP - C2082HP). Attachments or cross-rods can be inserted at any desired spacing, which provided great design versatility. Changes can be made without removing the chain from the conveyor. Our Hollow pin chains are as following items:
1. Hollow pin conveyor chains(MC series)
2. Hollow pin conveyor chains(FVC series)
3. Non-standard hollow pin conveyor chains
4. Hollow pin conveyor chains(ZC series)
5. Hollow pin chains
6. Stainless steel hollow pin chains

ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors

ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D d(min) F G
40HP 1/2" 12.70 7.94 7.92 10.20 11.80 1.50 1.50 5.58 4.00 7.90 9.4 1300 0.5
50HP 5/8" 15.875 9.53 10.16 13.00 14.80 2.00 2.00 7.01 5.12 9.90 11.65 2000 0.8
60HP 3/4" 19.05 12.70 11.91 15.50 17.50 2.40 2.40 8.12 5.99 12.40 14.25 3050 1.18
80HP 1" 25.40 15.88 15.88 20.80 24.00 3.10 3.10 11.27 8.02 16.30 17.75 5800 2.10
08BHP 1/2" 12.70 7.75 8.51 10.60 11.80 1.50 1.50 6.11 4.50 8.20 9.30 1500 0.63

DOUBLE PITCH HOLLOW PIN CHAIN

ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H T1 T2 D d(min) F G
C2040HP 1" 25.40 7.94 7.92 11.70 1.50 1.50 5.58 4.00 7.90 9.40 1300 0.45
C2050HP 1-1/4" 31.75 9.53 10.16 14.60 2.00 2.00 7.01 5.12 9.90 11.65 2000 0.74
C2060HP 1-1/2" 38.10 12.70 11.91 17.10 2.40 2.40 8.12 5.99 12.40 14.25 3050 1.10
C2080HP 2" 50.80 15.88 15.88 23.00 3.10 3.10 11.27 8.02 16.30 17.75 5800 1.95


ANSI Standard Hollow Pin Roller Chain For Food Handling Conveyors

CHAIN NO.
(ANSI)		 Pitch Width Roller Plate Pin Average
Ultimate
Strength
kgf		 Approx Weight
kg/m
P W Dia Height Thickness Dia Lengths
inch mm mm R H1 H2 T1 T2 D d(min) F G
A2040HP 1" 25.40 7.94 7.92 10.10 11.70 1.50 1.50 5.58 4.00 7.90 9.40 1300 0.43
A2050HP 1-1/4" 31.75 9.53 10.16 12.60 14.60 2.00 2.00 7.01 5.12 9.90 11.65 2000 0.72


HP chain standard is rollerless,R indicates bushing diameter.
