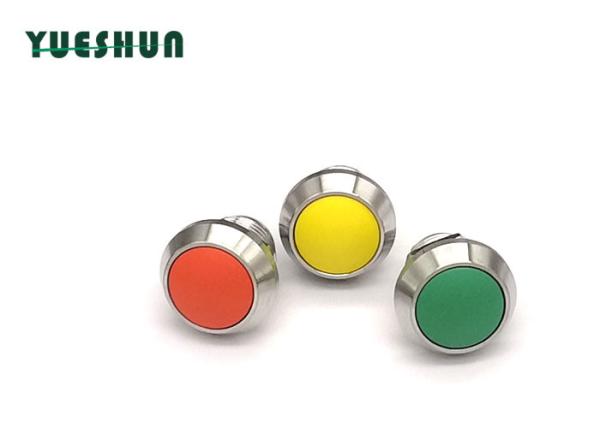

Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
Specifications
Brand Name :
YUESHUN
Model Number :
JS12B-S
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Max. Current :
2A
Max. Voltage :
36V DC
Protection Level :
IP65
Mechanical life :
More than1,000,000 cycles
Terminal material :
silver alloy
Panel mounting :
12mm
Description

12mm Metal 1NO Panel Mount Push Button Switch Ball round Head Pin Termlmal self reset switch

1. Only 12mm

2. Optional connector,To ensure contact performance,reduce waste of labor;

3. With concave design,operation is more convenient;

4. With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;

5. Waterproof and dustproof grade up to IP65;

6. Mechanical life: up to 100,000times,it can work at -30℃~80℃;

7. 1NO function,4pins,LED;

8. It has applied of many patents ,CCC,CE approved;

Product Feature

- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Momentary button: Press the power on, release the hand power on of off, the button spring to original position.
- IP Degree: Most of our products are IP67, some of them IP65, 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m. Duration of test 30 minutes, 5 means Protected against low pressure jets if water from all directions - limited ingress permitted.

Product Specification

Model Number JS12B-10J/S
Mounting Hole 12mm
Max.Switch Rating Ith : 2A Ui : 36V DC
Material Body Material: Stainless Steel
Button Material: PBT
Contact Material: Silver Alloy
Base Material: PBT
The Front Shape Ball Round Head
Terminal Type Pin Termlmal
Switch Operation Momentary
Contact Configuration Normal Open ( 1NO )
Mounting panel thickness 1-6 mm
Operation Distance About 2.5 mm
Protection Level IP65
Operating Temp -20℃～+55℃

Size

Momentary 12mm 1NO1NC IP65 Panel Mount Push Button Switch
