12v 2 Channel 50ms 22mm Automotive Momentary Piezo Push Button Switch
12v 2 Channel 50ms 22mm Automotive Momentary Piezo Push Button Switch
12v 2 Channel 50ms 22mm Automotive Momentary Piezo Push Button Switch
12v 2 Channel 50ms 22mm Automotive Momentary Piezo Push Button Switch
Specifications
Brand Name :
YUESHUN
Model Number :
YD22-10-Green
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Pulse Time :
Less than or equal to 50ms
Item :
Piezo Switch
Operation type :
Momentary
Operating Temperature :
-20℃～+55℃
Terminal :
Fly Cable Available
Panel mounting :
22mm
Description

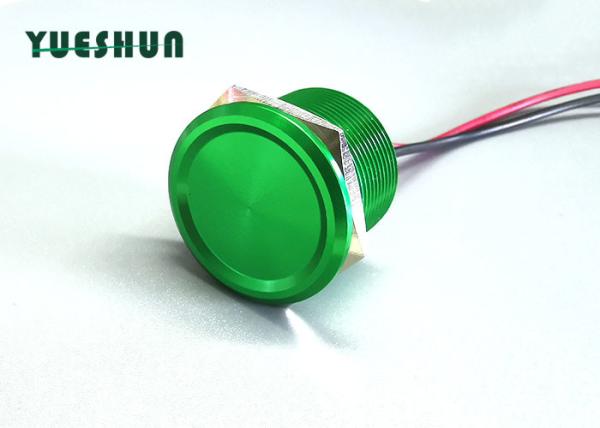

22mm Metal Green Shell Momentary Piezo Switch High Durability Long Operating Life

Thus piezo switches produce a single, brief "on" pulse. This pulse can vary with the amount of pressure which is applied, since higher pressures generate higher voltages which take longer to dissipate. A capacitor may be used to store the charge in order to lengthen the time constant of the gate circuit and therefore the width of the pulse. With additional circuitry this pulse can be extended further or used to change the state of an output from steady "Off" to steady "On" by toggling a flip-flop.

Feature

  • Diameter 22mm,
  • Normal Open
  • Waterproof

Product .Specification

Model Number

YD22-10-G

Mounting Hole

25mm

Max.Switch Rating

Ith : 100mA Ui : 24V DC

Body Material

Aluminum

Body Color

Green

The Front Shape

Flat Round Head

Terminal Type

0.22 Square wire (wire length can be customized)

Switch Operation

Momentary

Pulse Time

Less than or equal to 50ms

Mounting panel thickness

1-12 mm

Protection Grade

IP68 IEC529

Working Humidity

10%-90%

Operating Temp

-40℃～+70℃

Working Pressure

3~8N

Operating life:

More than 500,000 cycles

About US

Our company is one of the domestic manufacturers specializing in the production of metal button switches, metal indicator lights, focus on the development of high-quality products, production and sales, as well as services.

In order to guarantee the national consumers enjoy a high standard service, the company dedicated power strictly control the quality of products.For the design of the product carefully thinking, trial and error on the performance of the products to strictly control the quality of the parts, to constantly improve production technology, the customer Suggestions continuous improvement.

We strive to explore the market demand, to find the most market demand button products, to create the most satisfied customers products, strive to walk in the forefront of the trend, strive to build Yueshun brand, brilliant Yueshuni.Welcome customers to cooperate with us.
