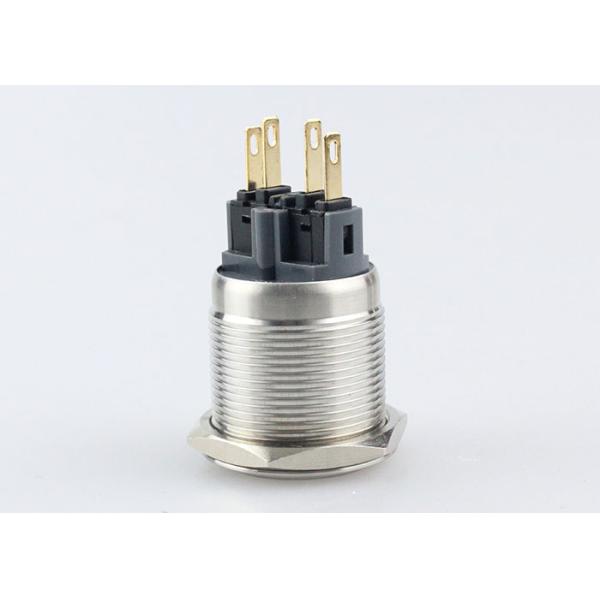

22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available
Specifications
Brand Name :
YUESHUN
Model Number :
JS22F-11/S
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 weekdays
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Terminal material :
Gold Plated silver alloy
Panel mounting :
22mm
Application :
universal
Contact Configuration :
1NO 1NC or 2NO 2NC
Warranty Period :
One Year
LED type :
Unilluminated
Description

IP67 22MM Momentary Anti Vandal Push Button Switch Stainless Steel 6pin 1NO 1NC 2NO 2NC are available

Product Description

- This is a very easy to install button , wich can be installed on the 22MM hole in the installation panel.
- Adopt the material of 304 stainless steel, the protection level is up to IP67, the shell has good texture and good gloss.
- Types with lights can be customized, such as ring, point, power supply, etc.If the quantity is large, you can also customize the text, graphics.

Product Specification

Model Number JS22F-11/S
Mounting Hole 22mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material Body Material: 304 Stainless Steel
Button Material: 304 Stainless Steel
Contact Material: Silver Alloy
Base Material: PBT
The Front Shape Flat Round Head
Terminal Type 4 Pin Termlmals ( 2.5 * 0.5 mm )
Switch Operation Momentary or Latching are available
Contact Configuration 1NO + 1NC or 2NO + 2NC are available
Mounting panel thickness Momentary:1-8 mm; Latching : 1-13 mm
Operation Distance About 0.5 mm
Protection Level IP67
Operating Temp -20℃～+55℃

22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available

22MM Momentary Anti Vandal Push Button Switch 4 Pins 1NO 1NC 2NO 2NC Available

F&Q:

1. Q:Do you have a catalog? Can you send the catalog to me for reference ?

A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.

2.Q: Can you provide samples? Are the samples free ?

A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for testing or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples.

3.Q: What's the difference between Momentary and Latching(ON-OFF)?

A: Latching type power buttons : Push it–on, push it again-off;

Momentary type power buttons: Push it- on, release - the actuator surface spring to original position.
