16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
Specifications
Brand Name :
YUESHUN
Model Number :
LA16H-11D
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
LED color :
Red,Green,Yellow,Orange,Blue,White,Purple
Led Voltage :
3V 6V 12V 24V 36V 110V 220V
Protection Level :
IP67
Mechanical life :
More than1,000,000 cycles
Terminal material :
silver alloy
Panel mounting :
16mm
Description

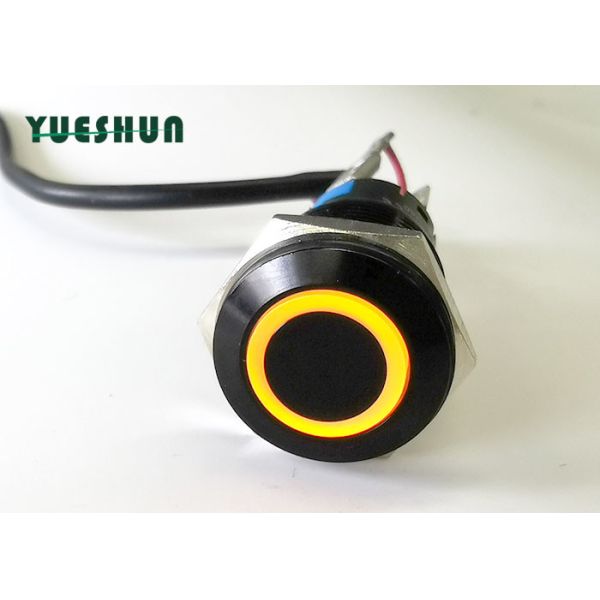

16mm High Head Dot Type Push Button Switch LED Illuminated stainless steel aluminum Latching push button switch

Product Description

- Illuminated push button switches are made of 304 Stainless Steel, 316 Stainless Steel, Black Aluminum, Nickel Plated Brass. Gold plated brass and so on.
- This waterproof and illuminated pushbuttons are great for the appliance used in wet environment, such as boat, outside door appliance, drink appliance, also great for DIY electric equipment.
- Package : 40pcs/box, or 100pcs/box. 1 piece push button switches with 1 robber ring.

Product Attribute

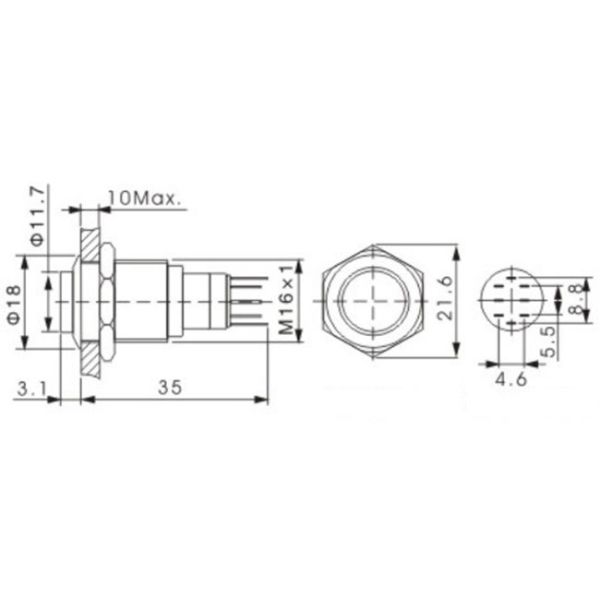

Mounting hole
Diameter		 16 mm Mounting Panel
Thickness

1-10 mm
Max.Switch Rating 5A / 250VA C Protection Level IP67
Operation type

Momentary

Latching

 Contact
Configuration

1NO + 1NC

2NO + 2NC
Body Material

Stainless steel

Aluminum

 Operation Distance About 2.8 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V 36V 110V 220V are available.
LED Type Dot Symbol High Head

16mm Dot Type Push Button Switch LED Illuminated , LED Latching Push Button Switch
