Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
Specifications
Brand Name :
YUESHUN
Model Number :
LAY37-11ZSD
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Head shape :
Φ40 Mushroom Head
Warranty Period :
Five Years
Product Name :
Emergency Stop Button Switch
Product Function :
Press the button in case of emergency. After the emergency is relieved, rotate the button back to the original position
LED color :
Red Green Yellow
Led Voltage :
6V 12V 24V 110V 220V 380V
Description

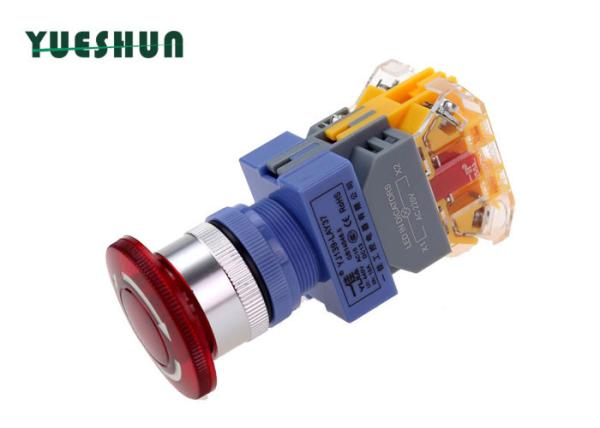

22mm illuminated 1NO 1NC Emergency Stop Push Button Switch Mushroom Head Flame Retardant Plastic LAY37 Y090

Feature

- The Body of this emergency stop button is made of high-temperature flame retardant original plastic, and the contact is made of copper foot and silver contact with high thickness, with a mechanical life of 2 million times.

- Its normal contact is 1NO + 1NC .Of course, if you need 2NO or 2NC, we can also customize for you.

- Its lamp bead is bright LED lamp bead, there are three colors: red, green, yellow available; There are a variety of voltage available: 6V 12V 24V 110V 220V 380V.

Product .Specification

Model Number

LAY37-11ZSD

Mounting Hole

22mm

Max.Switch Rating

Ith : 10A Ui : 600V AC

Body Material

Flame Retardant Plastic

Contact Material

Silver Alloy

The Front Shape

Φ40 Mushroom Head

Terminal Type

Screw Termlmal

Switch Operation

Emergency Stop Type

Contact Configuration

1NO + 1NC or 2NO or 2NC

Mounting panel thickness

1-6 mm

Size Drawing

Illuminated Emergency Stop Button Normally Open Normally Closed 22mm Mounting Hole
