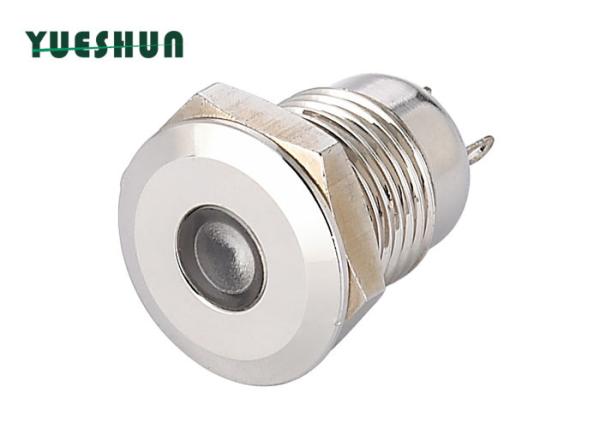

Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
Specifications
Brand Name :
YUESHUN
Model Number :
JS12F-D
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Color :
Silver
Body Material :
Nickel Palted Brass
Led Type :
Dot Symbol
LED life :
More than 40000 hours
Product Name :
Metal Led Indicator
Product Function :
A button that conveys information
Description

Nickel Palted Brass Led Indicator Lights for 12mm Mounting Hole 12v blue red LED light

Product Features

- This product uses brass nickel plating material, the surface is smooth, the texture is good.

- This indicator is made of LED, which have a life span of more than 40,000 hours. The lights are bright and the colors are beautiful.

- This indicator light comes in seven colors and four voltages can be customized ,to meet your various needs.

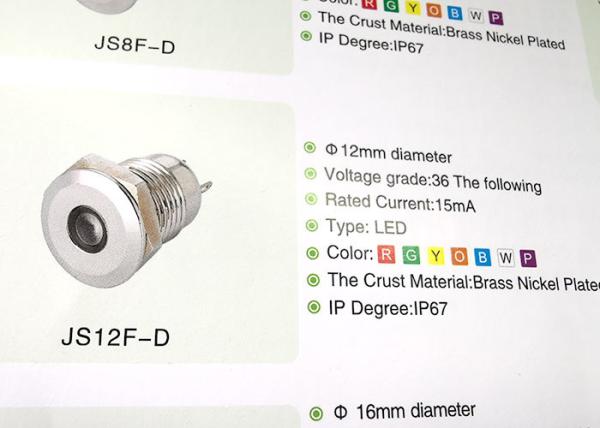

Product Specification

Product Name Metal Led Indicator Lights
Model Number JS12F-D
Mounting Hole 12mm
Max.Switch Rating Ith : 15mA Ui : 36V
Material Body Material: Nickel Palted Brass
Base Material: PBT
Terminal Type Pin Termlmal (2.8*0.5mm)
Mounting panel thickness 1-8 mm
LED Parameters Led Type: Dot Symbol
LED Color:
Red,Green,Yellow,Orange,Blue,White,Purple Can be customized.
Led Voltage:
3V 6V 12V 24V for choose.
LED Life: More than 40,000 hours
Protection Level IP67

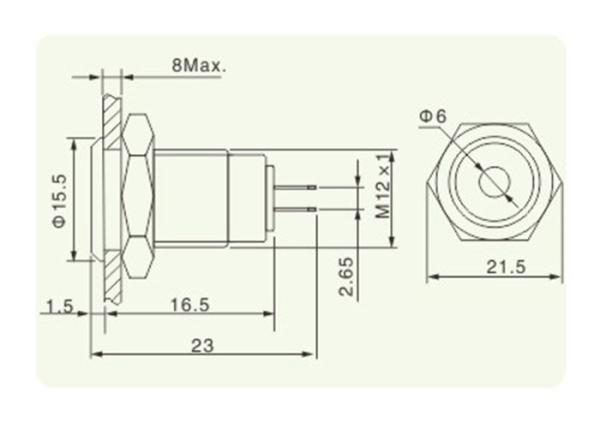

Size Drawing

Nickel Palted Brass LED Indicator Light Smooth Surface For 12mm Mounting Hole
