16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
16mm Push Button Switch LED Illuminated , Automotive Push Button Switches
Specifications
Brand Name :
YUESHUN
Model Number :
LA16F-11E/S
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Max. Current :
3A
Max. Voltage :
36V DC
Mounting panel thickness :
16MM
Operation Distance :
About 2.8 mm
Led Type :
Ring Symbol
LED life :
More than 40,000 hours
Description

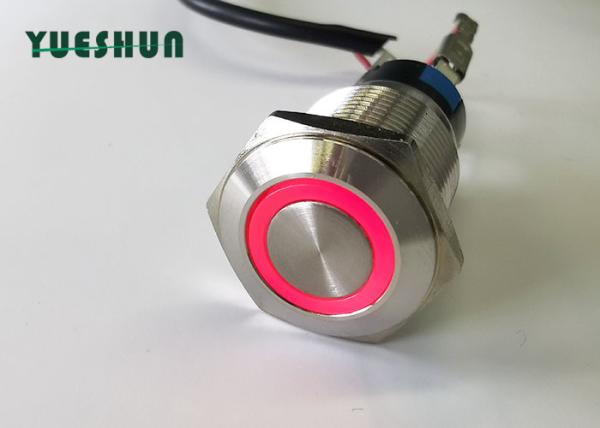

16mm Momentary Laching Push Button Switch LED Illuminated Ring type automotive push button switch

Product Description

- The color may have different as the difference display, pls understand.
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater;
- Waterproof pushbutton switches is made of anti-vandal metal, such as stainless steel, Gold plated brass , Zn-Al Alloy, Nickel Plated Brass.
- High-quality push button switches are based on a solid-state output, we ensure you a very long life expectancy (more than 50 millions cycles).The flat actuator is completely closed, preventing the water and the dusts, perfect for surface cleaning required in the food-processing and medical industries.

Product Attribute

Mounting hole
Diameter		 16mm Mounting Panel
Thickness		 1-10 mm
Max.Switch Rating 5A / 250V AC Protection Level IP67
Operation type

Momentary

Latching

 Contact
Configuration		 1NO + 1NC
2NO + 2NC
Body Material

Stainless steel

Oxidized Aluminum

 Operation Distance About 2.8 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V 36V 110V 220V are available.
LED Life More than 40,000 hours

Product tags

push button switch led illuminated

,

led for auto

,

led illuminated push button switch
