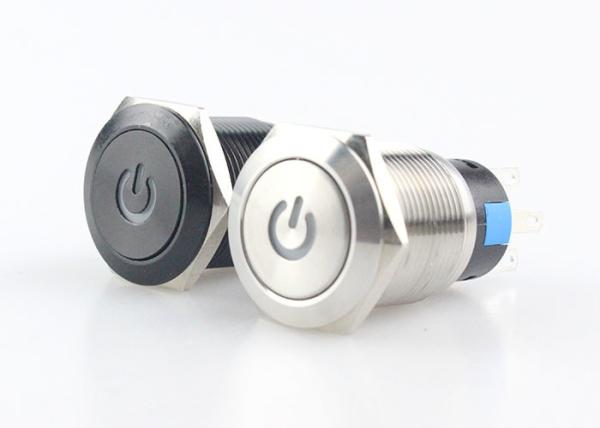

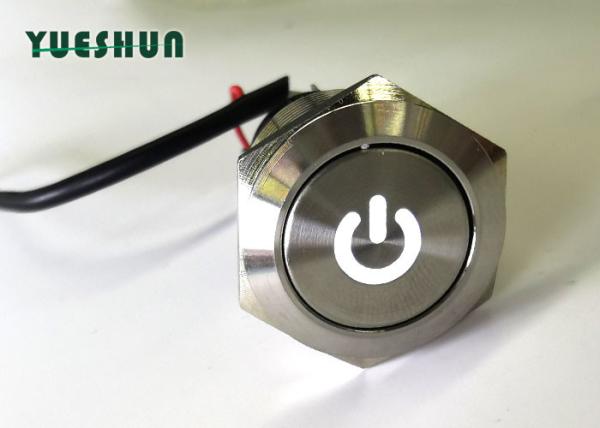

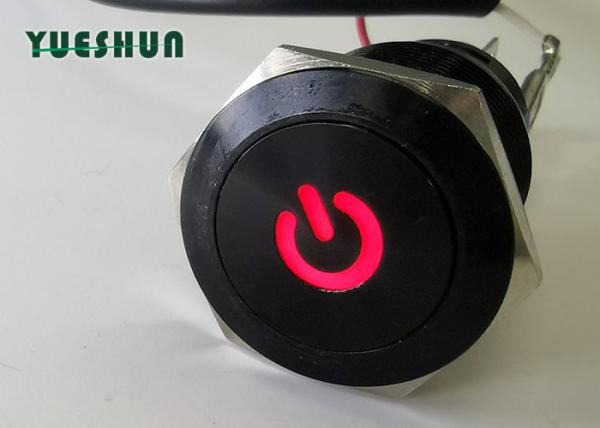

Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Momentary Push Button Switch LED Illuminated 1NO 1NC IP67 Nice Touch Feeling
Specifications
Brand Name :
YUESHUN
Model Number :
LA19F-11Y
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Led Type :
Ring Symbol
LED life :
More than 40,000 hours
Protection Level :
IP 67
Mechanical life :
More than1,000,000 cycles
Application :
universal
Contact Configuration :
1NO 1NC
Description

19mm waterproof momentary Push Button Switch LED Illuminated Power TYPE Metal automotive push button switch

Product Description

- Package : 40pcs/box, or 100pcs/box. 1 piece push button switches with 1 robber ring.
- There are many materials for your choice. Stainless steel is made to withstand rough use and the Brass is made to mirror effort. Zn-Al Alloy suppliy you whatever color you need.
- Push button switch are simple device. There are two key parts for the psuh button, the actuator and the contacts. The head actuator will go all the way through the switch. Inside is a movable silve plated contact and spring. When the actuator is activited, it touches with the stationary contacts, causing the action to take place.

Product Attribute

Mounting hole
Diameter		 19mm Mounting Panel
Thickness		 1-10 mm
Max.Switch Rating 5A / 250V AC Protection Level IP67
Operation type

Momentary

Latching

 Contact
Configuration		 1NO + 1NC
2NO + 2NC
Body Material

Stainless steel

Oxidized Aluminum

 Operation Distance About 3.1 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V 36V 110V 220V are available.
LED Type Power Symbol
