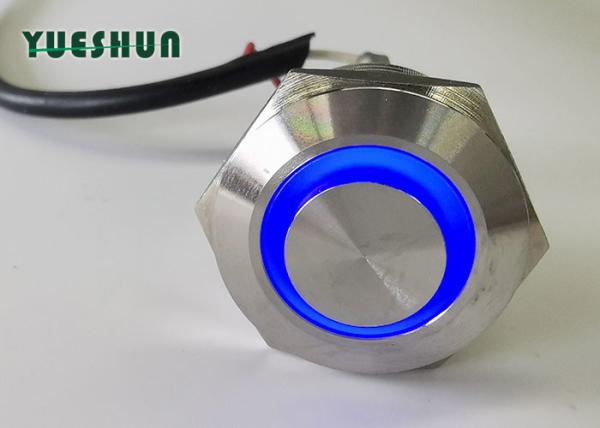

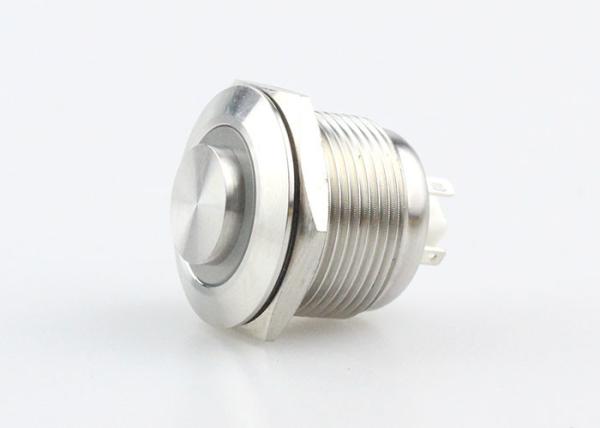

IP67 Miniature Illuminated Push Button Switch Stainless Steel Body High Power Efficiency
IP67 Miniature Illuminated Push Button Switch Stainless Steel Body High Power Efficiency
IP67 Miniature Illuminated Push Button Switch Stainless Steel Body High Power Efficiency
IP67 Miniature Illuminated Push Button Switch Stainless Steel Body High Power Efficiency
Specifications
Brand Name :
YUESHUN
Model Number :
JS19H-10E
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
LED color :
Red,Green,Yellow,Orange,Blue,White,Purple
Led Voltage :
3V 6V 12V 24V
Color :
silver
Body Material :
Stainless Steel
Mounting panel thickness :
1-6mm
Operation Distance :
About 0.5mm
Description

high head Ring led type Push Button Switch LED Illuminated IP67 Waterproof mini momentary push button switch

Product Description

- Anti-vandal and security push button switches are attractive, robust and durable. It is an extra tough, stainless steel pushbutton which is applicable for security systems, Kiosks, Process control, Public access equipment, Gas pumps, Outdoor machinery and industrial machinery.
- Our push button switches are tested rigorously. Each piece is tested for appearance and clicking for at least 5 times before sending
- Real color may slightly different from pictures due to many factors such as computer screen's resolution, brightness, contrast etc. Hope understanding.

Product Attribute

Mounting hole
Diameter		 19 mm Mounting Panel
Thickness

1-6mm
Max.Switch Rating 500mA / 24V DC Protection Level IP67
Operation type

Momentary

 Contact
Configuration		 1NO
Body Material

Stainless steel

 Operation Distance About 0.5 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V are available.
LED Type Ring Symbol high head

Product tags

metal light switch

,

metal toggle switch

,

metal momentary switch
