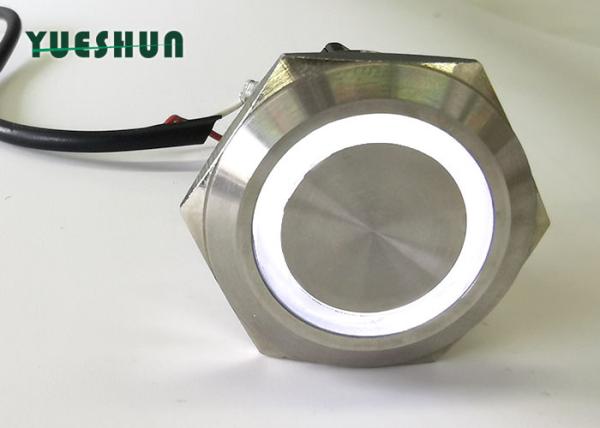

25mm Push Button Switch LED Illuminated , 24V 12V Illuminated Push Button Switch
25mm Push Button Switch LED Illuminated , 24V 12V Illuminated Push Button Switch
25mm Push Button Switch LED Illuminated , 24V 12V Illuminated Push Button Switch
25mm Push Button Switch LED Illuminated , 24V 12V Illuminated Push Button Switch
Specifications
Brand Name :
YUESHUN
Model Number :
JS25F-11E
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Led Type :
Ring Symbol
LED life :
More than 40,000 hours
Operation type :
Momentary Latching
Operating Temperature :
-20℃～+55℃
Weigh :
30g
Terminal type :
Pin Termlmal
Description

25mm Waterproof Momentary Push Button Switch LED Illuminated Ring 12v 24v led lighted momentary push button switch

Product Description

- High quality metal shell, durable and strong corrosion resistance,, and illuminated angel eye pushbuttons are great for all kinds of first level equipments. Silver or gold plated soldering contacts makes it available for high power efficiency.
- Waterproof pushbutton switches is made of anti-vandal metal, such as stainless steel, Gold plated brass , Zn-Al Alloy, Nickel Plated Brass.
- The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out;

Product Attribute

Mounting hole
Diameter		 25mm Mounting Panel
Thickness

Momentary 1-8mm

Latching 1-13mm
Max.Switch Rating 5A / 250V AC Protection Level IP67
Operation type

Momentary

Latching

 Contact
Configuration		 1NO + 1NC
2NO + 2NC
Body Material

Stainless steel

 Operation Distance About 2.5 mm
LED LED Color Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized.
Led Voltage 3V 6V 12V 24V 36V 110V 220V are available.
LED Type Ring Symbol

25mm Push Button Switch LED Illuminated , 24V 12V Illuminated Push Button Switch
