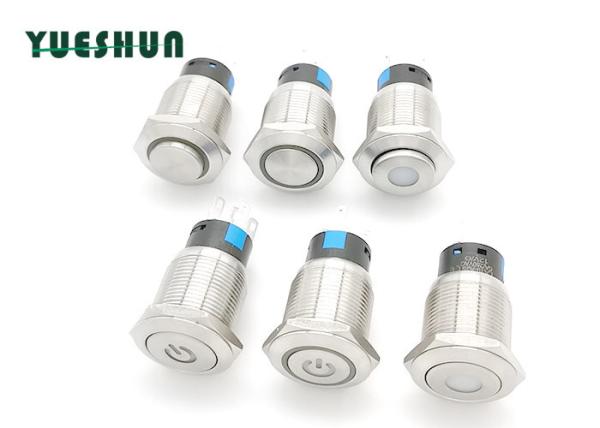

LED Light Stainless Steel Push Button Switch 110V 220V Durable For Longstanding Press
LED Light Stainless Steel Push Button Switch 110V 220V Durable For Longstanding Press
Specifications
Brand Name :
YUESHUN
Model Number :
LA19 illuminated
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
LED color :
Red Blue Yellow Green White Orange Purple
Led Voltage :
3V 6V 12V 24V 36V 110V 220V
Terminal material :
Silver alloy
Panel mounting :
19mm
Weigh :
30g
Terminal type :
Pin Terminal
Description

19mm LED Light Momentary Stainless Steel Push Button Switch 110v 220v LED latching push button

Product Description

- Enclosure Material: Stainless Steel;High quality metal material & IP65 waterproof protection can be used in wet or dusty enviroment.
- IP Degree: IP67, IK08. Waterproof Protection Can be Used in Wet or Dusty Environment. 6 means Totally protected against dust,7 means Protected against the effects of temporary immersion between 15cm and 1m.

Product Specification

Model Number LA19 illuminated
Mounting Hole 19mm
Max.Switch Rating Ith : 5A Ui : 250V AC
Material Body Material : Stainless Steel
Button Material :Stainless Steel
Contact Material : Silver Alloy
Base Material : PBT
The Front Shape Flat Round Head , High Round Head
Terminal Type Pin Termlmal( 2.8 * 0.5 MM )
Switch Operation Momentary or Latching are available
Contact Configuration 1NO + 1NC or 2NO + 2NC
Mounting panel thickness 1-10 mm
Operation Distance About 3.1 mm
LED Parameters Led Type : Power , Ring , Dot Type
LED Color :
Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing all Can be customized.
Led Voltage:
3V 6V 12V 24V 36V 110V 220V 360V for choose.
LED Life : More than 40,000 hours
Protection Level IP67
Operating Temp -20℃～+55℃
