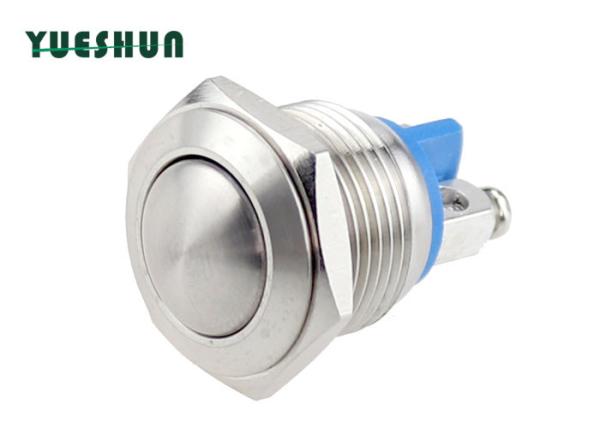

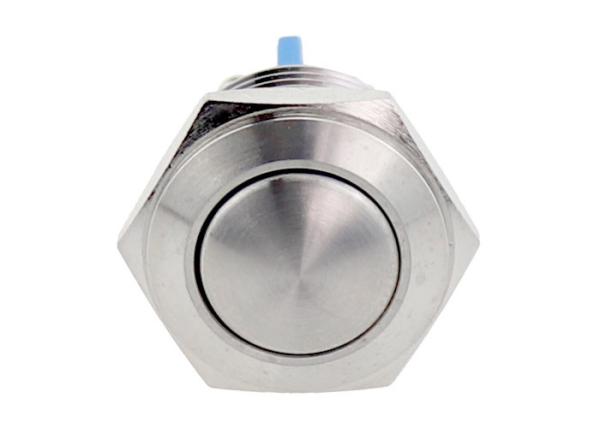

Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
Specifications
Brand Name :
YUESHUN
Model Number :
JS16B-10/S
Certification :
CE RoHS
Place of Origin :
Wenzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
The product is packed in foam box to prevent damage during transportation.
Max. Current :
2A
Max. Voltage :
36V DC
Color :
Silver
Body Material :
Stainless Steel
Operation type :
Momentary
Operating Temperature :
-20℃～+55℃
Description

Momentary Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal open waterproof

Product Feature

- These push buttons switches are perfect for Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls. Also great for electronic DIY projects
- This is Metal push button,which is durable for longstanding press, not easily damaged. You can ask for the fllowing materials: stainless steel, Gold plated brass , Nickel Plated Brass, Zn-Al Alloy.
- Momentary Switch: Press the button switch, it works ; Press the button again ,switch stops working .

Product Specification

Model Number JS16B-10/S
Mounting Hole 16mm
Max.Switch Rating Ith:2A Ui:36V DC
Material Body Material: Stainless Steel
Button Material: Stainless Steel
Contact Material: Silver Alloy
Base Material: PBT
The Front Shape Ball Round Head
Terminal Type Screw Termlmal
Switch Operation Momentary
Contact Configuration Normal Open or Normal Closed all can be customized.
Mounting panel thickness 1-6 mm
Operation Distance About 1.5 mm
Protection Level IP65
Operating Temp -20℃～+55℃
Mechanical life: More than1,000,000 cycles
Electrical life: More than 200,000 cycles

Size

Metal Anti Vandal Push Button Switch 16mm Ball Round Head Normal Open Waterproof
