25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact
25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact
25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact
25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact
Specifications
Brand Name :
YUESHUN
Model Number :
JS25-11E/S
Certification :
ROHS CE
Place of Origin :
CHINA WENZHOU
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
Blister Package+ Foam+Color box Or Upon your request
switch type :
push button switch
button color :
sliver
material :
stainless steel
diamter :
25mm
application :
general application
head shape :
flat head
Description

25mm Stainless Steel Panel Mount Push Button Switch Waterproof Sliver Contact

Quick Details:

——momentary switch—Press the power on, release the hand power on of off, the button spring to original position.

——1NO-normal open ,1NC-normal close can be customized

——Easy to Install, there's even a rubber gasket to keep water out of the enclosure. But they can not be submerged in the water.

Product Parameter

product type push button switch
mounting hole size 25mm
head shape flat head
operation type momentary
function 1no
terminal type pin terminal
protection level ip67
color sliver

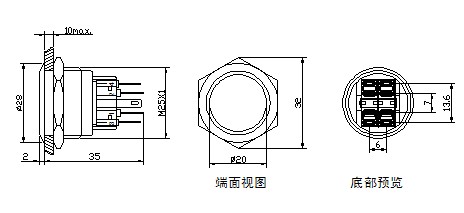

Product size reference:

25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact

F&Q:

Q: Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.

Q:How long is your products Warranty Period?

A: Generally, 1~2 years(After shipment date).

Q: Can you provide samples ? Are the samples free ?

A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples.

Transport:

Normally, we will deliver the goods within three working days after the customer places an order.We usually deliver goods by DHL,UPS,FEDEX,EMS and other express delivery methods, which can be delivered within 3-5 days.

25mm Panel Mount Push Button Switch Ip67 Momentary Sliver Contact
