30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset
30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset
30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset
30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset
Specifications
Brand Name :
YUESHUN
Model Number :
WD30-10E/S
Certification :
ROHS CE
Place of Origin :
CHINA ZHEJIANG
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
Blister Package+ Foam+Color box Or Upon your request
led color :
Red,Green,Yellow,Orange,Blue,White,Purple
product type :
micro push button switch
diameter :
28mm
terminal type :
4 pin terminal
Max.Voltage :
24vdc
Max.Current :
500mA
Description

30mm Ip67 Large Micro Push Button Switch Led Illuminated Stainless Self-Reset Button

Quick Details:

——Easy to Install, there's even a rubber gasket to keep water out of the enclosure. But they can not be submerged in the water.

——Momentary switches are switches which only remain in their on state as long as they’re being actuated (pressed, held, etc.).

——This button is built with 4 LED beads, bright light, uniform brightness.

Product Parameter

mounting hole size 30mm
the front head shape flat head
body material Stainess steel
Max.Current 500mA
Max.Voltage 24VDC
terminal type 4 pin terminal
operation type momentary
Mechanical life more than 1000000 cycles

led type ring symbol
led voltage 3v-24v
led color Red Green Blue Yellow White
led life more than 40000 hours

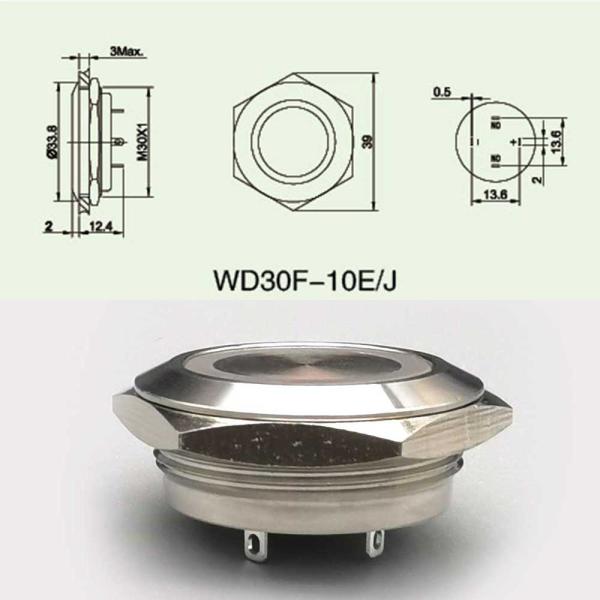

Product size:

30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset

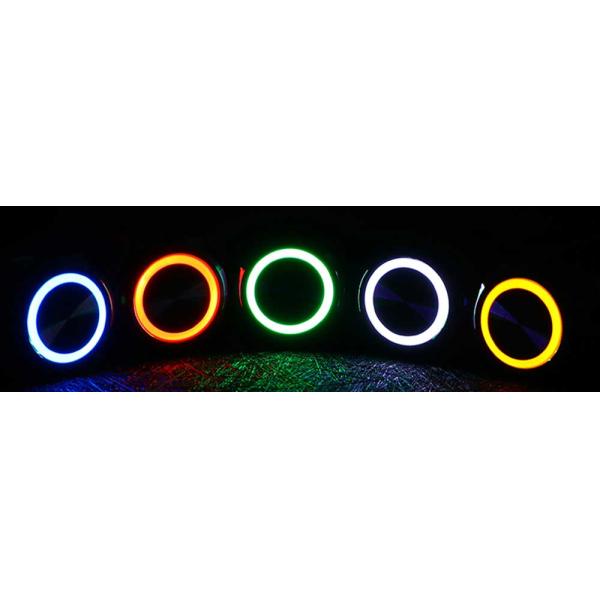

Product display:

30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset

30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset

F&Q:

Q: Can you provide samples ? Are the samples free ?

A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples

Q: Can you make the switch as our requirement?

A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.

Q : What about your delivery time?

A: We have a lot of products in stock.We can send the stock products in 3 work days.If without stock,or stock is not enough, we will check the delivery time with you

Transport&Packing:

30mm Ip67 Micro Push Button Switch Led Illuminated Stainless Self Reset
