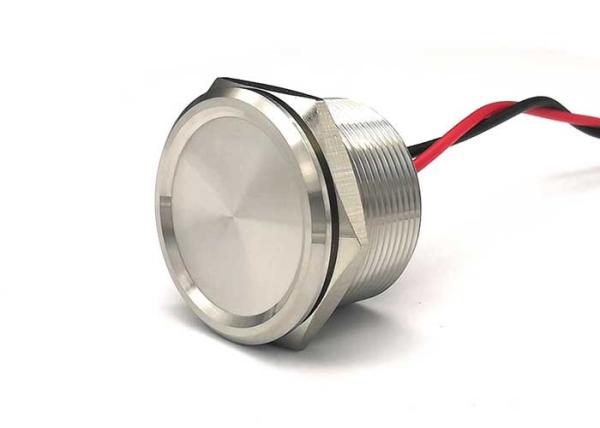

Ip68 Silver Piezo Touch Switch 25mm Momentary For Door Bell
Ip68 Silver Piezo Touch Switch 25mm Momentary For Door Bell
Ip68 Silver Piezo Touch Switch 25mm Momentary For Door Bell
Ip68 Silver Piezo Touch Switch 25mm Momentary For Door Bell
Specifications
Brand Name :
YUESHUN
Model Number :
YD25-10E/S
Certification :
ROHS CE
Place of Origin :
CHINA ZHEJIANG
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T to our company account or by paypal
Supply Ability :
5000Pcs/Day
Delivery Time :
3-7 work days
Packaging Details :
Blister Package+ Foam+Color box Or Upon your request
Contact Resistance :
≤50mA
diameter :
25mm
material :
stainless steel
color :
sliver
LED :
NO
ip degree :
ip68
Description

Ip68 Stainless Steel Water Proof Piezo Touch Switch 25mm Momentary For Door Bell

Quick Details:

——Our push buttons use 95% silver contacts,with good contact performance.

——Momentary button: Press the power on, release the hand power on of off, the button spring to original position.

——When you push it, it has short pulse contact about 50mS and will off soon no matter how long you push it!

Product Parameter

the front head shape flat round head
mounting hole size 25mm
body material stainless steel
ip degree ip68
Max.Current 200mA
Max.Voltage 24VDC/AC
operating life more than 2000000 cycles

Product size:

Ip68 Silver Piezo Touch Switch 25mm Momentary For Door Bell

F&Q:

1:Q: Could I put my own logo on it?

A: Sure,customers' logo can be printed or put on the items.

2:Q:How long is your products Warranty Period?

A: Generally, 1~2 years(After shipment date).

3:Q:Do you have a catalog? Can you send me the catalog to me for checking them ?

A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.

About our company:

We are a high-tech enterprises specialized in integrative development, including designing,developing, producing and selling. Specializing in solar system, electrical junction box, distribution box, control box, have many experience of DIY kinds of electric box, as well as cabinet thermostat and hearters and other electrical related products.

In the future, we will move towards the direction of internationalization, specialization and diversification, step forward internationally with a macro vision, lead product quality with professional ability, face market challenges with diversified thinking, and actively improve the brand image, and become your most trusted partner!
