19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
Specifications
Brand Name :
Anwell Touch
Model Number :
AW190IB-G001
Certification :
CE,Rohs,FCC
Place of Origin :
China
MOQ :
3 Pieces
Price :
Negotiable
Payment Terms :
TT
Supply Ability :
10000 pieces per Month
Delivery Time :
8-15 working days
Packaging Details :
Standard carton box
Color :
Black
Series :
Gaming
Touch Screen Type :
Infrared
Touch signal input :
RS232
Viewing Angle :
178/178 (H/V)
Optional :
Bezel optional
Function :
Work on Pot O Gold/ WMS
Response time :
≤6ms
Single package size: :
50X10X41 cm
Single gross weight: :
7.500 kg
Description

Product Specification

Name: Open Frame 19inch IR Touch screen Monitor

Model: AW190IB-G001

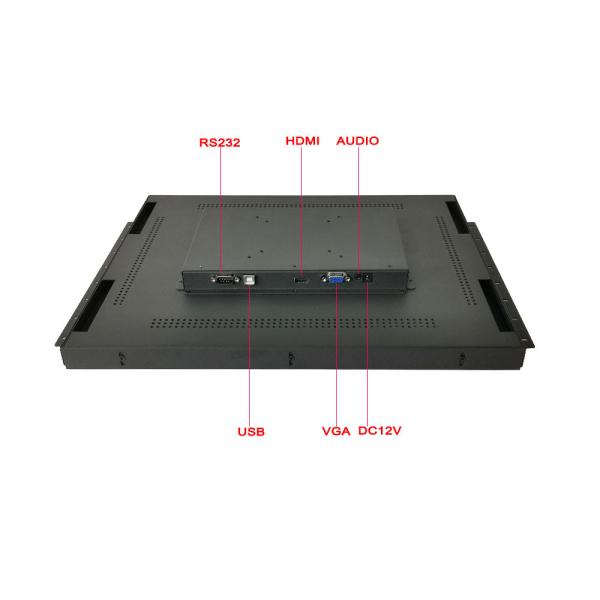

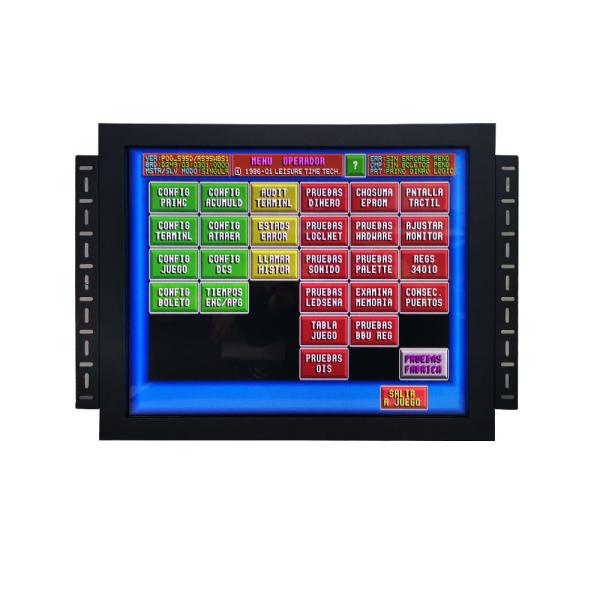

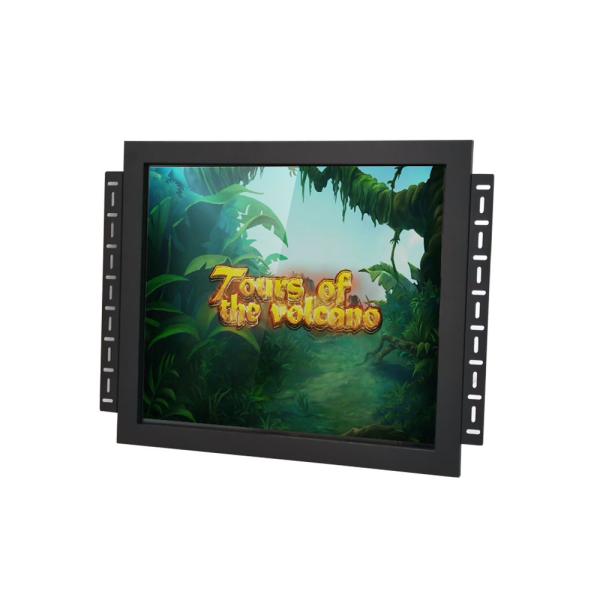

Product Picture:

19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol

Product Paramenters:

Anwell Model AW190IB-G001
Monitor Color Black
Aspect Ratio 4:3
Resolution 1280×1024
Colors 16.7 M
Active Area 376.32(W) × 301.056(H) mm
Number of Touches 1 points_Touch Infrared Touch Screen
Brightness 300 cd/㎡
Response Time 5 ms
Viewing Angle 85/85/80/80 (Typ.)(CR≥10)
Contrast Ratio 1000:1
Backlight Lifetime (hours) LED / 50,000h
Touch Technology 1 points Infrared Touch
Touch Connector RS232
Touch Panel Drivers Compatible with 3M/ELO protocol
Touch Response Time ＜5ms
Power Supply Input AC110 ~ 240V
Output DC 12V/4A
Interface VGA,RS232
Power consumption ≤25W
Temperature Operating 0℃~50℃/Storage‐ 20℃~60℃
Humidity Range (RH) Operating 20%RH~80%RH/Storage10%RH~90%RH
Housing material Metal
Installation 75mm and 100mm VESA mount
Warranty(year) 1 Year
Support customization

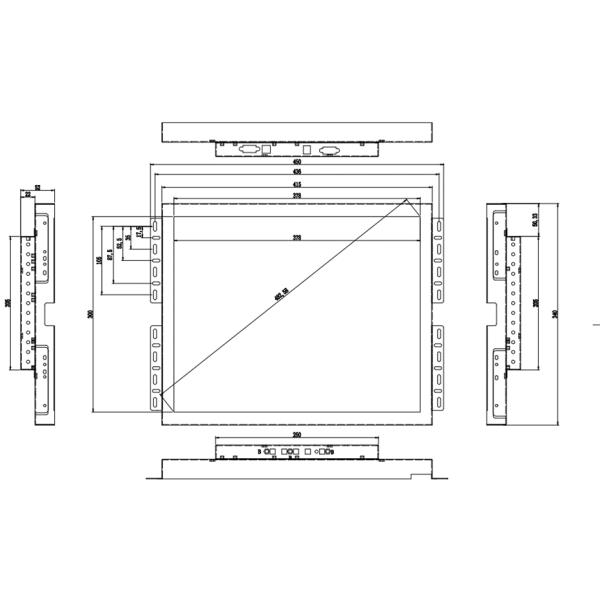

Structural dimension diagram:

19 Inch Infrared Touch Screen Gaming Monitor Compatible With 3M/ELOs Protocol
